M4219 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

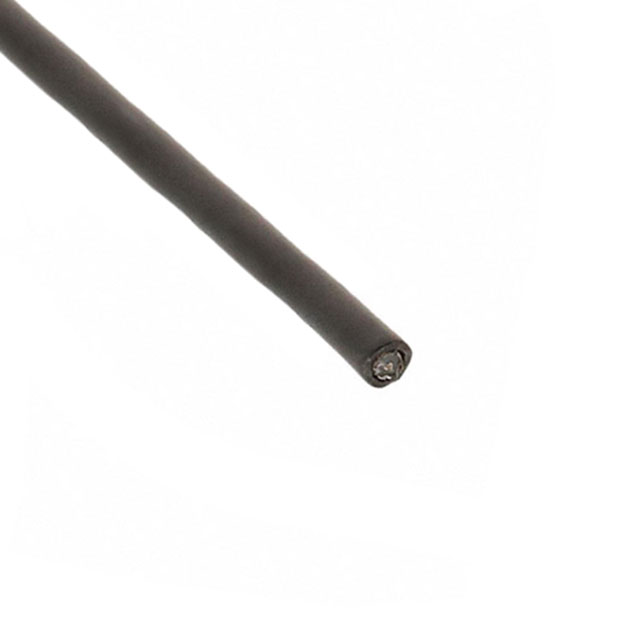

CABLE COAXIAL RG58A 20AWG 100'
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Conductor Material | Length | Length | Cable Group | Usage | Impedance | Cable Type | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.117 in | 2.97 mm | 91 % | 66 | -40 C | 75 ░C | Copper Tinned | Copper Tinned | 100 ' | 30.48 m | RG-58A | Computer | 50 Ohms | Coaxial | 21 AWG | Black | 0.203 in | 5.16 mm | Poly-Vinyl Chloride (PVC) | 19 | 0.0071 in | Braid |
