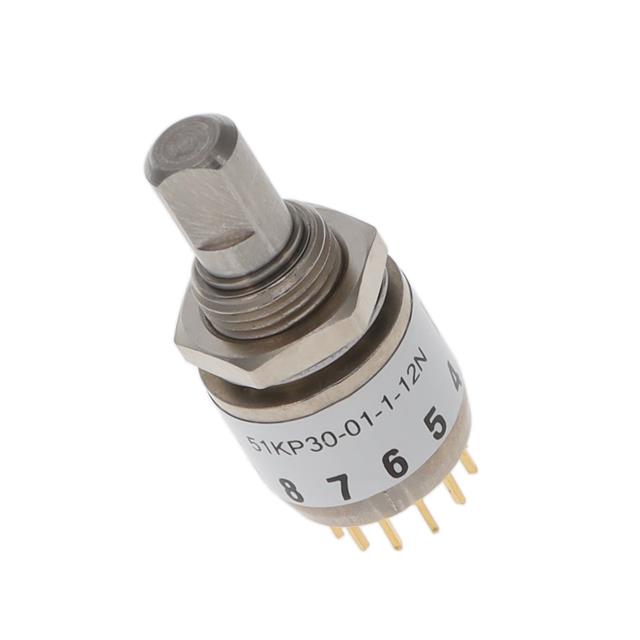

51KP30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 3POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Actuator Type | Current Rating (Amps) | Contact Timing | Mounting Type | Circuit per Deck | Depth Behind Panel [custom] | Contact Finish | Angle of Throw | Voltage Rating - AC | Number of Decks [custom] | Number of Poles per Deck | Index Stops | Termination Style | Voltage Rating - DC | Actuator Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.65 mm | Flatted (6.35mm Dia) | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount Through Hole | 3P3T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 3 | Fixed | PC Pin | 28 V | 9.53 mm | |
Grayhill Inc. | Flatted (6.35mm Dia) | 150 mA 200 mA | Shorting (MBB) | Panel Mount Through Hole | 3P4T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 3 | Fixed | PC Pin | 28 V | 9.53 mm | 4 | |
 Grayhill Inc. | Flatted (6.35mm Dia) | 150 mA 200 mA | Shorting (MBB) | Panel Mount Through Hole | SP6T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 1 | Fixed | PC Pin | 28 V | 9.53 mm | 6 | |
Grayhill Inc. | 9.65 mm | Flatted (6.35mm Dia) | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount Through Hole | 3P4T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 3 | Fixed | PC Pin | 28 V | 9.53 mm | 4 |
Grayhill Inc. | 9.65 mm | Flatted (6.35mm Dia) | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount Through Hole | DP6T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 2 | Fixed | PC Pin | 28 V | 9.53 mm | 6 |
 Grayhill Inc. | 9.65 mm | Flatted (6.35mm Dia) | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount Through Hole | SP12T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 1 | Continuous | PC Pin | 28 V | 9.53 mm | 12 |
Grayhill Inc. | Flatted (6.35mm Dia) | 150 mA 200 mA | Shorting (MBB) | Panel Mount Through Hole | DP5T | 13.64 mm | Gold | 30 ° | 115 V | 1 | 2 | Fixed | PC Pin | 28 V | 9.53 mm | 5 |
