GSE6 Series

Catalog

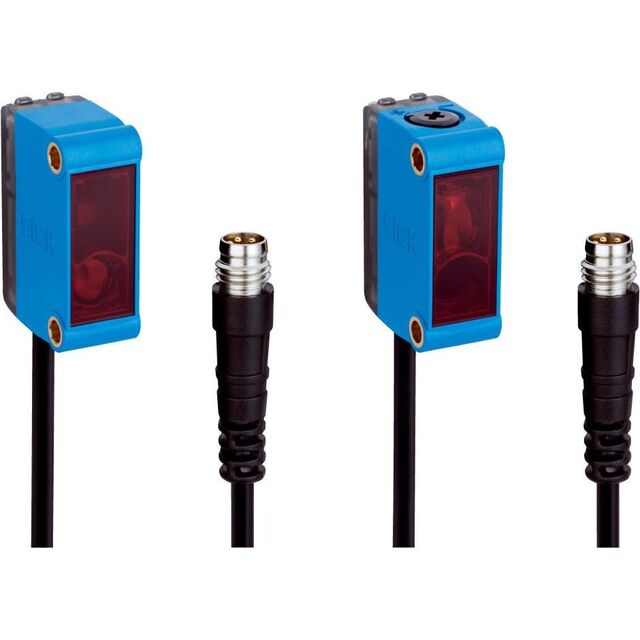

SENSOR THROUGH-BEAM 15M PNP

Part	Light Source	Response Time	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Connection Method	Sensing Distance	Sensing Distance	Adjustment Type	Cable Length	Cable Length	Sensing Distance
SICK, Inc. 1061847	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	PNP	Cable with Connector	590.551 in	15 m	Adjustable Potentiometer	0.3 m	11.81 "
SICK, Inc. 1060791	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable	590.551 in	15 m	Adjustable Potentiometer	2 m	78.74 "
SICK, Inc. 1064653	Infrared (880nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable	570.866 "	14.5 m		2 m	78.74 "
SICK, Inc. 1054852	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable with Connector	590.551 in	15 m		0.3 m	11.81 "
SICK, Inc. 1054830	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	PNP	Cable with Connector	590.551 in	15 m		0.3 m	11.81 "
SICK, Inc. 1052451	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Connector M8	590.551 in	15 m
SICK, Inc. 1054835	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable with Connector		393.701 in		0.3 m	11.81 "	10 m
SICK, Inc. 1054833	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable with Connector	590.551 in	15 m		0.3 m	11.81 "
SICK, Inc. 1060795	RED (650nm)	500 µs	IP67	-25 °C	55 °C	Through-Beam	10 VDC	30 VDC	NPN	Cable	590.551 in	15 m	Adjustable Potentiometer	2 m	78.74 "
SICK, Inc. GSE6-P4112	RED (650nm)	200 µs	IP67 IP69K	-10 °C	50 °C	Through-Beam	10 VDC	30 VDC	NPN - Dark-ON/Light-ON	Connector M8	0.394 in	10 mm	Adjustable Potentiometer
