FHG.00 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Finish	Mounting Type	Contact Material	Shielding	Shell Material	Contact Finish - Mating	Primary Material	Connector Type	Backshell Material, Plating	Features	Number of Positions	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Ingress Protection	Orientation [custom]	Insert Material	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Shell Size - Insert
LEMO FHG.00.302.CLAD35Z	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	2	Push-Pull	UL94 V-0	5 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	302
LEMO FHG.00.302.CLAD27Z	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	2	Push-Pull	UL94 V-0	5 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.2 mm	0.087 in	2.7 mm	0.106 in	302

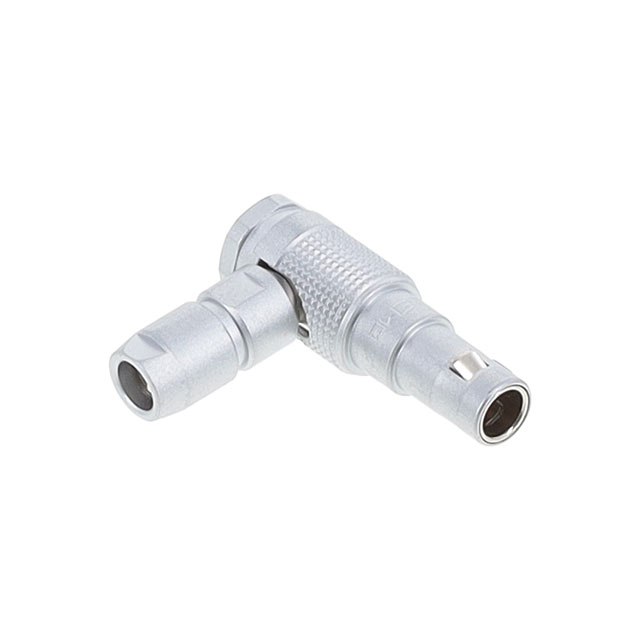

LEMO FHG.00.302.CLAD35	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	2	Push-Pull	UL94 V-0	5 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	302
LEMO FHG.00.305.CLAD35Z	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	5	Push-Pull	UL94 V-0	1.7 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	305
LEMO FHG.00.302.CLAZ	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	2	Push-Pull	UL94 V-0	5 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)					302
LEMO FHG.00.304.CLAD35Z	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	4	Push-Pull	UL94 V-0	2 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	304
LEMO FHG.00.305.CLAD35	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	5	Push-Pull	UL94 V-0	1.7 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	305
LEMO FHG.00.304.CLAD35	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell	4	Push-Pull	UL94 V-0	2 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	304
LEMO FHG.00.303.CLAD35Z	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell		Push-Pull	UL94 V-0	3 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	303
LEMO FHG.00.303.CLAD35	39.4 µin	1 µm	-55 C	250 °C	Silver	Chrome	Free Hanging (In-Line) Right Angle	Brass	Shielded	Brass	Gold	Metal	Plug Male Pins	Brass Chrome	Backshell		Push-Pull	UL94 V-0	3 A	IP50 - Dust Protected	G	Polyetheretherketone (PEEK)	2.7 mm	0.106 in	3.5 mm	0.138 in	303
