PEC17 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 17POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Rows	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Shrouding	Number of Positions Loaded	Insulation Color	Termination	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Style	Contact Material	Insulation Height	Insulation Height	Mounting Type	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions [custom]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length

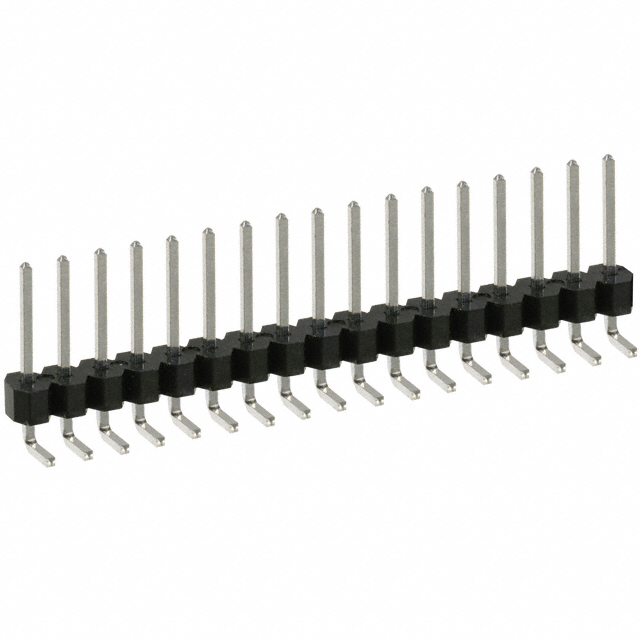

Sullins Connector Solutions PEC17SGAN	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze	3.56 mm	0.14 in	Right Angle Through Hole	UL94 V-0	Tin	100 çin	2.54 çm

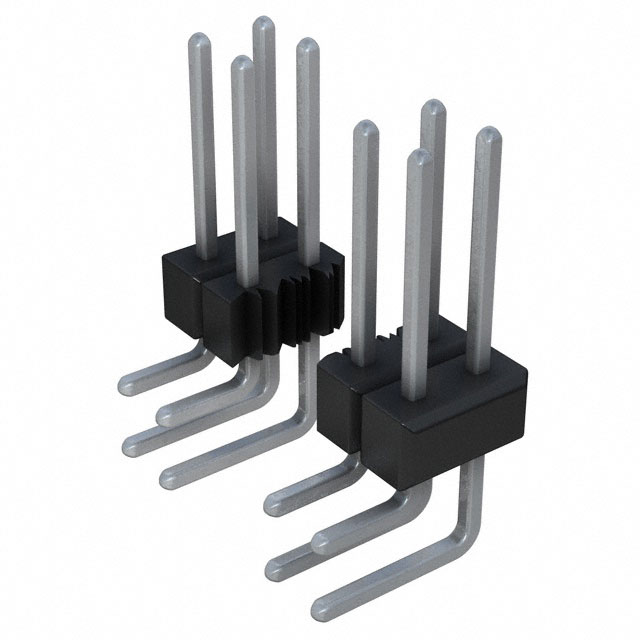

Sullins Connector Solutions PEC17DGAN	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull		Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze			Right Angle Through Hole	UL94 V-0	Tin	100 çin	2.54 çm	6.1 mm	0.24 in	2	0.1 in	2.54 mm	34
Sullins Connector Solutions PEC17DAHN	2.54 µm	100 µin	0.82 in	20.83 mm	Push-Pull		Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	5.84 mm	0.23 in	Board to Board Cable	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	UL94 V-0	Tin	100 çin	2.54 çm			2	0.1 in	2.54 mm	34	29.21 mm	1.15 in

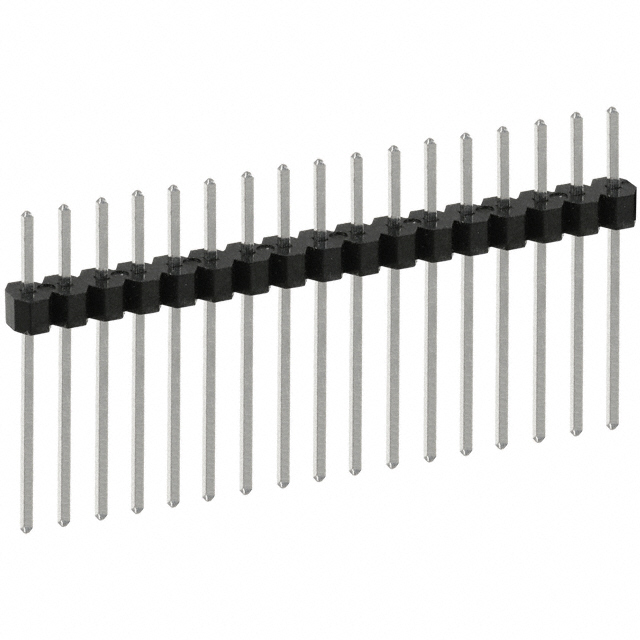

Sullins Connector Solutions PEC17SAGN	2.54 µm	100 µin	0.72 "	18.29 mm	Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	5.84 mm	0.23 in	Board to Board Cable	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	UL94 V-0	Tin	100 çin	2.54 çm							26.67 mm	1.05 in

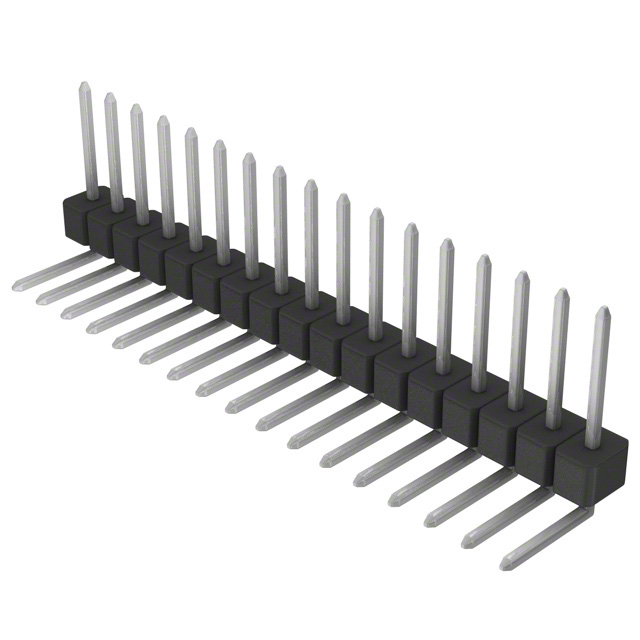

Sullins Connector Solutions PEC17SGBN	2.54 µm	100 µin			Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze	3.56 mm	0.14 in	Right Angle Through Hole	UL94 V-0	Tin	100 çin	2.54 çm									5.08 mm	0.2 "

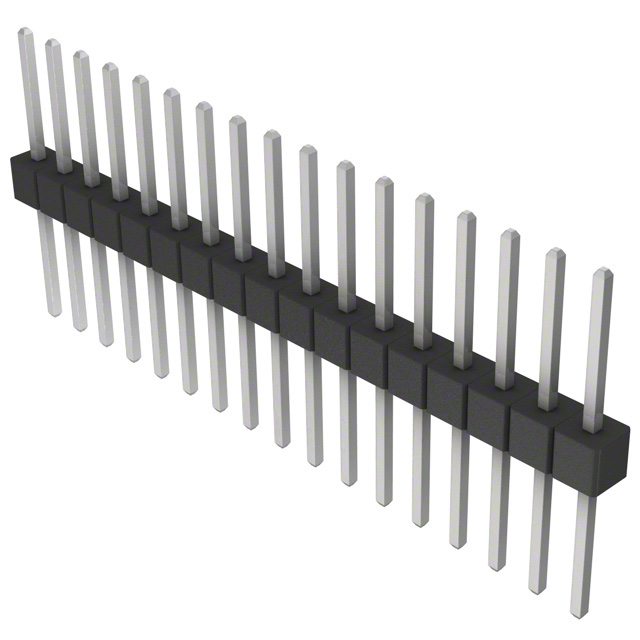

Sullins Connector Solutions PEC17SFCN	2.54 µm	100 µin	0.32 in	8.13 mm	Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	UL94 V-0	Tin	100 çin	2.54 çm							18.75 mm				0.738 in

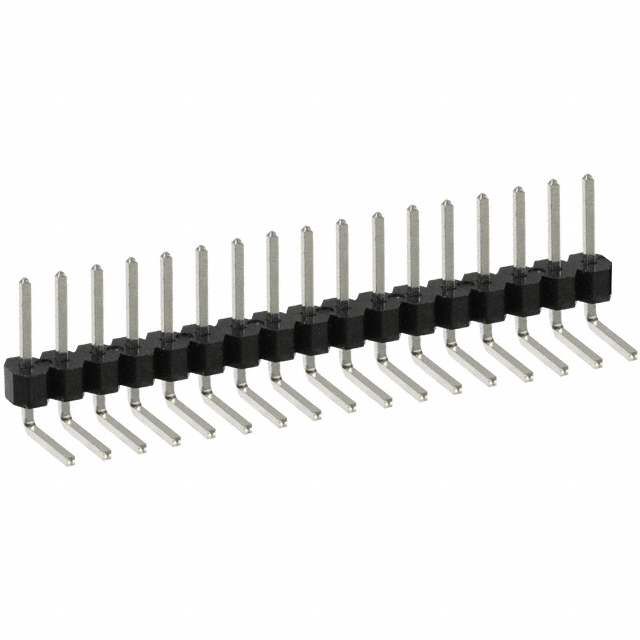

Sullins Connector Solutions PEC17SBBN	2.54 µm	100 µin			Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	5.84 mm	0.23 in	Board to Board Cable	Phosphor Bronze	3.56 mm	0.14 in	Right Angle Through Hole	UL94 V-0	Tin	100 çin	2.54 çm									5.08 mm	0.2 "

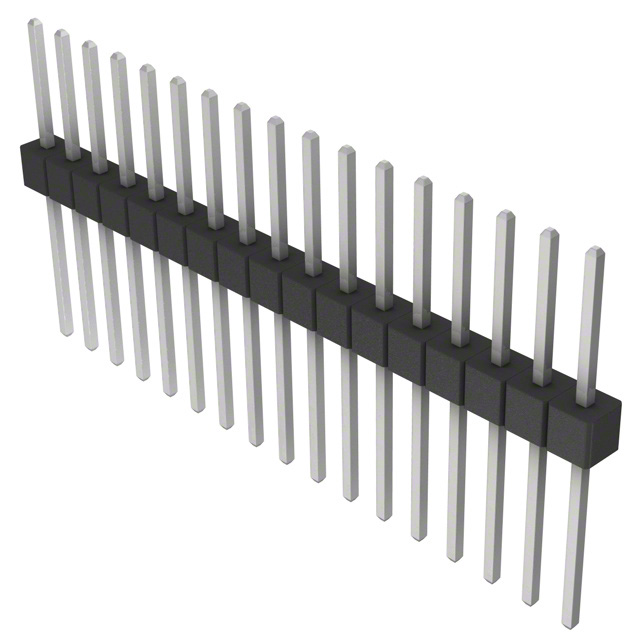

Sullins Connector Solutions PEC17SFDN	2.54 µm	100 µin	0.42 in	10.67 mm	Push-Pull	1	Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	UL94 V-0	Tin	100 çin	2.54 çm							21.29 mm	0.838 in
Sullins Connector Solutions PEC17DBAN	2.54 µm	100 µin	0.1 in	2.54 mm	Push-Pull		Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	5.84 mm	0.23 in	Board to Board Cable	Phosphor Bronze			Right Angle Through Hole	UL94 V-0	Tin	100 çin	2.54 çm	6.1 mm	0.24 in	2	0.1 in	2.54 mm	34
Sullins Connector Solutions PEC17DFCN	2.54 µm	100 µin	0.32 in	8.13 mm	Push-Pull		Header Breakaway	Square	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	All	Black	Solder	3 A	0.1 "	2.54 mm	Male Pin	8.08 mm	0.318 in	Board to Board Cable	Phosphor Bronze	2.54 mm	0.1 in	Through Hole	UL94 V-0	Tin	100 çin	2.54 çm			2	0.1 in	2.54 mm	34	18.75 mm				0.738 in
