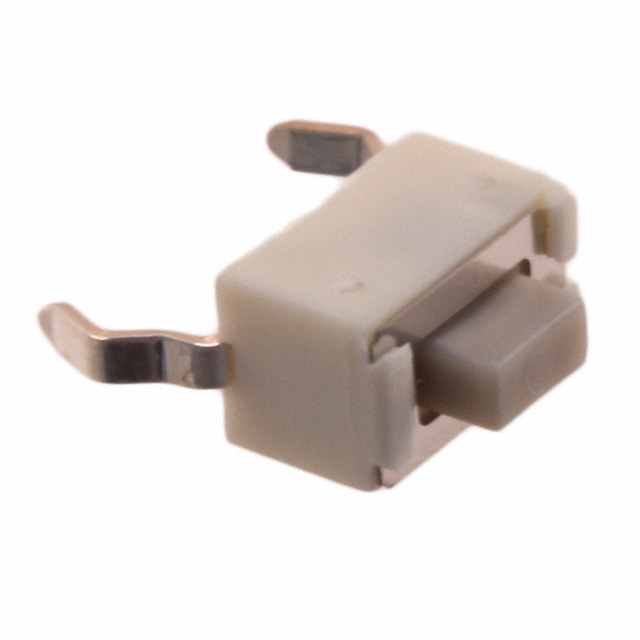

EVQ-PE Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Actuator Type	Operating Force	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Outline [y]	Outline [x]	Actuator Orientation	Switch Function	Illumination	Switch Travel	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]
Panasonic Industrial Automation Sales EVQ-PE405Q	Through Hole	Standard	100 gf	0.05 A 12 VDC	5 mm	3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	PC Pin	-30 ░C	85 °C
Panasonic Industrial Automation Sales EVQ-PE504K	Through Hole	Standard		0.05 A 12 VDC		3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	PC Pin	-30 ░C	85 °C	4.3 mm
Panasonic Industrial Automation Sales EVQ-PE105K	Surface Mount	Standard	100 gf	0.05 A 12 VDC	5 mm	3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	Gull Wing	-30 ░C	85 °C

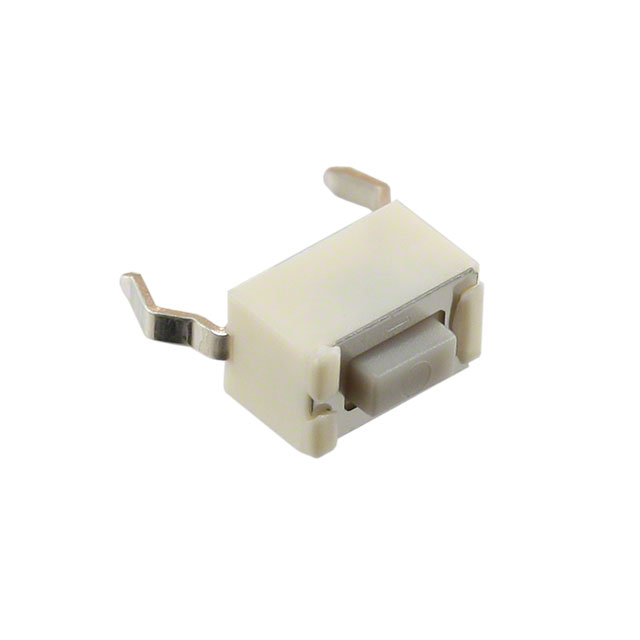

Panasonic Industrial Automation Sales EVQ-PE404Q	Through Hole	Standard	100 gf	0.05 A 12 VDC		3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	PC Pin	-30 ░C	85 °C	4.3 mm

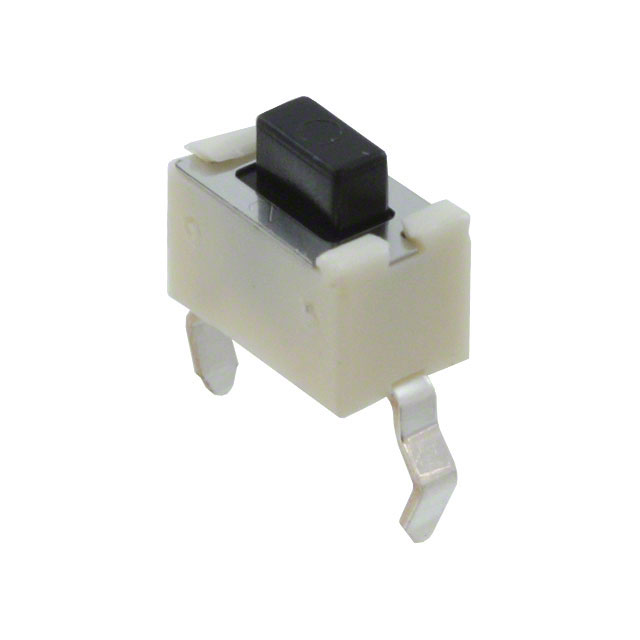

Panasonic Industrial Automation Sales EVQ-PE505K	Through Hole	Standard		0.05 A 12 VDC	5 mm	3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	PC Pin	-30 ░C	85 °C
Panasonic Industrial Automation Sales EVQ-PE104K	Surface Mount	Standard	100 gf	0.05 A 12 VDC		3.5 mm	6 mm	Top Actuated	Off-Mom	Non-Illuminated	0.25 mm	SPST-NO	Gull Wing	-30 ░C	85 °C	4.3 mm
