MS3106F20 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Mounting Type | Voltage Rating | Qualification | Connector Type | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Finish | Grade | Insert Material | Ingress Protection | Contact Material | Shielding | Color | Orientation | Contact Finish - Mating | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions | Fastening Type | Applications | Primary Material | Shell Size - Insert | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Voltage Rating [custom] | Voltage Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Free Hanging (In-Line) | 500 VAC 700 VDC | MIL-DTL-5015 | Plug Male Pins | 13 A 23 A | 16 | 20 | Olive Drab Cadmium | Military | Plastic | Environment Resistant | Copper Alloy | Unshielded | Olive Drab | N (Normal) | Silver | Aluminum Alloy | -55 C | 125 °C | Backshell Coupling Nut | 9 | Threaded | Aviation Industrial Marine Military | Metal | |||||
ITT Cannon, LLC | Free Hanging (In-Line) | 200 VAC 250 V | MIL-DTL-5015 | Plug Female Sockets | 22 A 74 A | Olive Drab Cadmium | Military | Environment Resistant | Olive Drab | N (Normal) | Silver | Aluminum Alloy | -55 C | 125 °C | Cable Clamp Coupling Nut | 6 | Threaded | Metal | 20-8 | ||||||||||

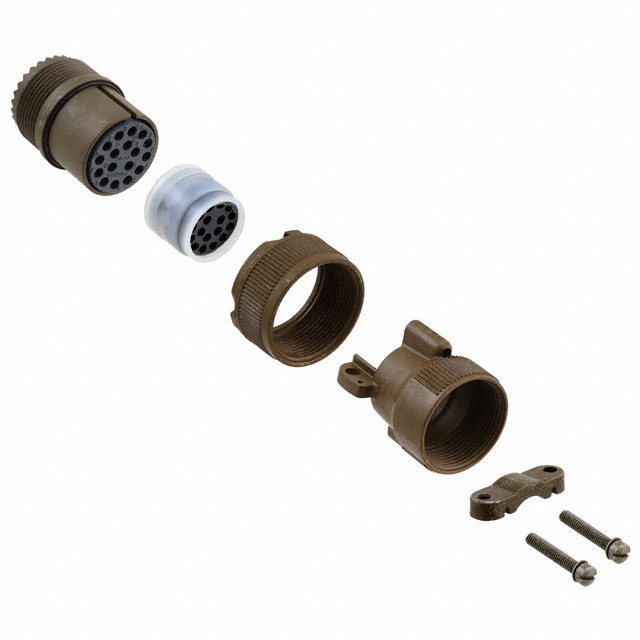

 ITT Cannon, LLC | Free Hanging (In-Line) | 500 VAC 700 VDC | MIL-DTL-5015 | Plug Female Sockets | 22 A | Olive Drab Cadmium | Military | Environment Resistant | Olive Drab | N (Normal) | Silver | Aluminum Alloy | -55 C | 125 °C | Cable Clamp Coupling Nut | Threaded | Metal | 20 | 29 | ||||||||||
ITT Cannon, LLC | Free Hanging (In-Line) | 500 VAC 700 VDC | MIL-DTL-5015 | Plug Female Sockets | 23 A 46 A | 14 | 20 | Olive Drab Cadmium | Military | Plastic | Environment Resistant | Copper Alloy | Unshielded | Olive Drab | N (Normal) | Silver | Aluminum Alloy | -55 C | 125 °C | Backshell Coupling Nut | 5 | Threaded | Aviation Industrial Marine Military | Metal | |||||

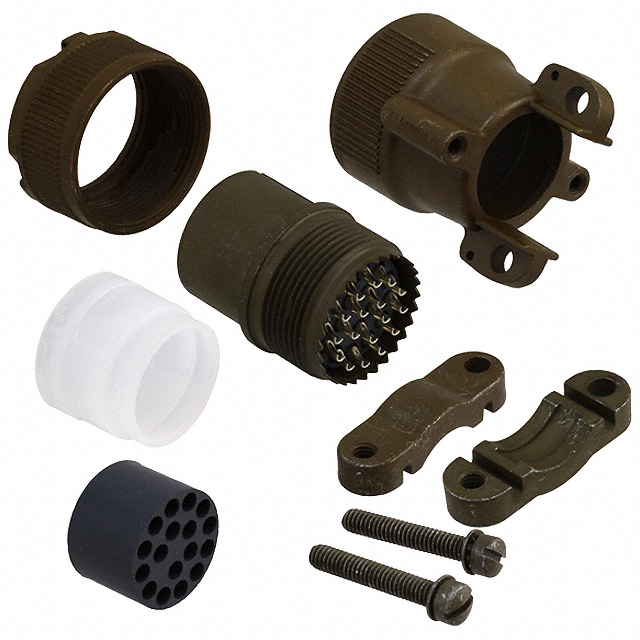

 ITT Cannon, LLC | Free Hanging (In-Line) | 500 VAC 700 VDC | MIL-DTL-5015 | Plug Male Pins | 13 A | Olive Drab Cadmium | Military | Environment Resistant | Olive Drab | N (Normal) | Silver | Aluminum Alloy | -55 C | 125 °C | Cable Clamp Coupling Nut | Threaded | Metal | 20 | 29 | ||||||||||
 ITT Cannon, LLC | Free Hanging (In-Line) | MIL-DTL-5015 | Plug Female Sockets | 41 A | 4 | 20 | Olive Drab Cadmium | Military | Environment Resistant | Olive Drab | Y | Silver | Aluminum Alloy | -55 C | 125 °C | Cable Clamp Coupling Nut | 4 | Threaded | Metal | 1250 VDC | 900 VAC | ||||||||
ITT Cannon, LLC | Free Hanging (In-Line) | 500 VAC 700 VDC | MIL-DTL-5015 | Plug Male Pins | 13 A | Olive Drab Cadmium | Military | Plastic | Environment Resistant | Copper Alloy | Unshielded | Olive Drab | W | Silver | Aluminum Alloy | -55 C | 125 °C | Backshell Coupling Nut | 8 | Threaded | Aviation Industrial Marine Military | Metal | 20-7 |
