83704 Series
Manufacturer: Belden Inc.
Beta
⌘K

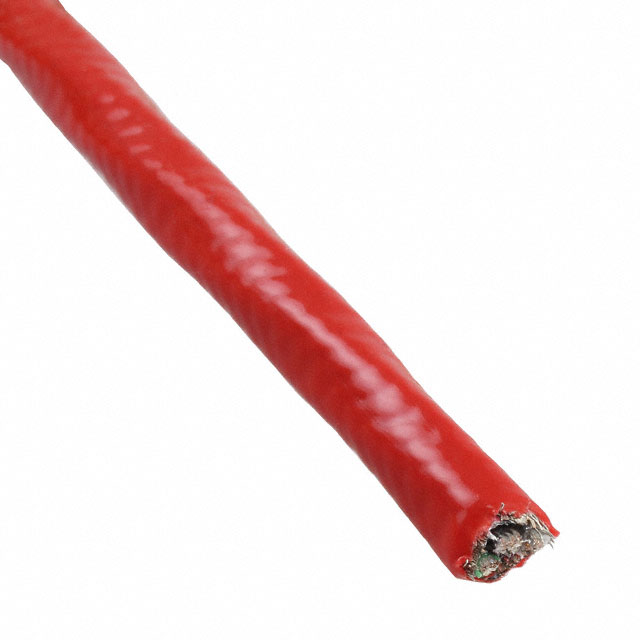

CABLE 4COND 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Cable Type | Jacket Color | Wire Gauge | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Number of Conductors | Conductor Insulation | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Fluorinated Ethylene-Propylene (FEP) Plenum | Multi-Conductor | Red | 16 AWG | Audio Control Instrumentation | 0.014 in | 0.356 mm | Braid Foil | 4 | Fluorinated Ethylene-Propylene (FEP) | Copper Tinned | -70 °C | 200 °C | 19 | 29 | 100 ft | 30.5 m | 0.223 " | 5.66 mm |
