NM-24 Series
Manufacturer: Essentra Components
Beta
⌘K

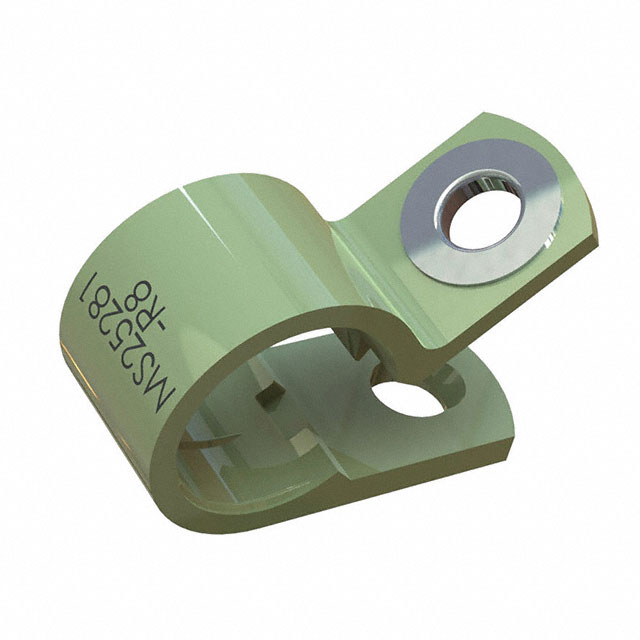

FASTENER, SCREW MOUNT CABLE CLAMP, 1.5 ", NYLON (POLYAMIDE), GREEN, 0.553 "
| Part | Screw Size | Screw Size | Bundle Center to Mounting Center | Bundle Center to Mounting Center | Mounting Type | Panel Hole Size | Panel Hole Size | Material Thickness | Material Thickness | Material Flammability Rating | Type | Features | Opening Size | Opening Size | Color | Type Attributes | Material | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | M5 | #10 | 29.72 mm | 1.17 " | Fastener | 0.206 in | 5.23 mm | 0.12 in | 3.05 mm | UL94 V-2 | Clamp P-Type | Eyelet Heat Stabilized | 38.1 mm | 1.5 in | Green | Ribbed | Polyamide (PA66) Nylon 6/6 | 0.553 in | 14.05 mm |
