WP-PA HF Series
Manufacturer: Phoenix Contact
Beta
⌘K

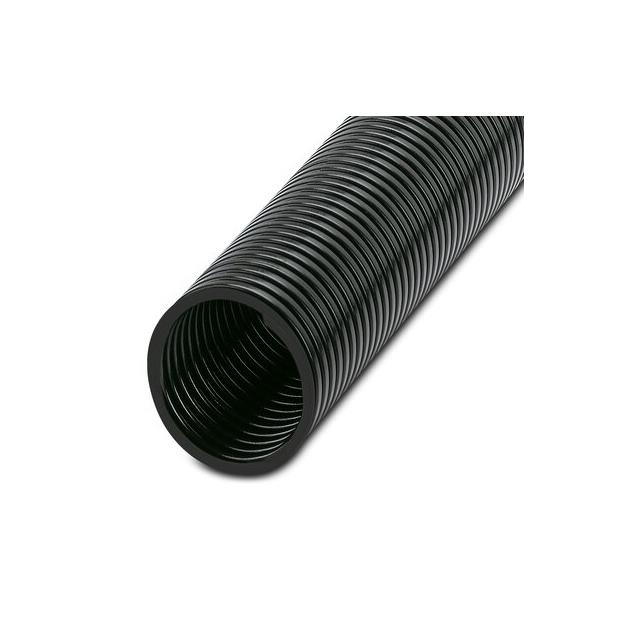

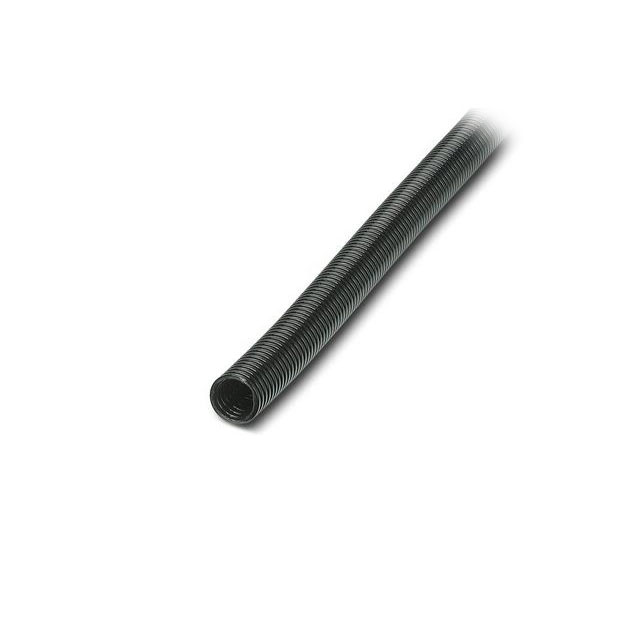

HOSE 0.394" ID POLY BLACK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material | Environment Protection [custom] | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Features | Type Attributes | Material Flammability Rating | Color | Liquid Protection | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 115 °C | -40 C | Halogen Free Nylon Polyamide (PA) | UV Resistant | 10 mm | 0.394 in | 0.512 in | 13 mm | Wire Loom Protective Hose | Acid Resistant Airtight Self Extinguishing Solvent Resistant | Convoluted Corrugated | UL94 V-0 | Black | Fluid Resistant Gasoline Resistant Oil Resistant | ||
 Phoenix Contact | 115 °C | -40 C | Halogen Free Nylon Polyamide (PA) | UV Resistant | 36 mm | 1.417 in | 1.673 in | 42.49 mm | Wire Loom Protective Hose | Acid Resistant Airtight Self Extinguishing Solvent Resistant | Convoluted Corrugated | UL94 V-0 | Black | Fluid Resistant Gasoline Resistant Oil Resistant | 1 m | 3.28 ft |
