281 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 32 A

Part	Material - Insulation	Stripping Length [Max]	Stripping Length [Min]	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Color	Terminal - Width [y]	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Type	Termination Style	For Use With/Related Products	Fuse Type [x]	Fuse Type [y]	Disconnect Type	Features

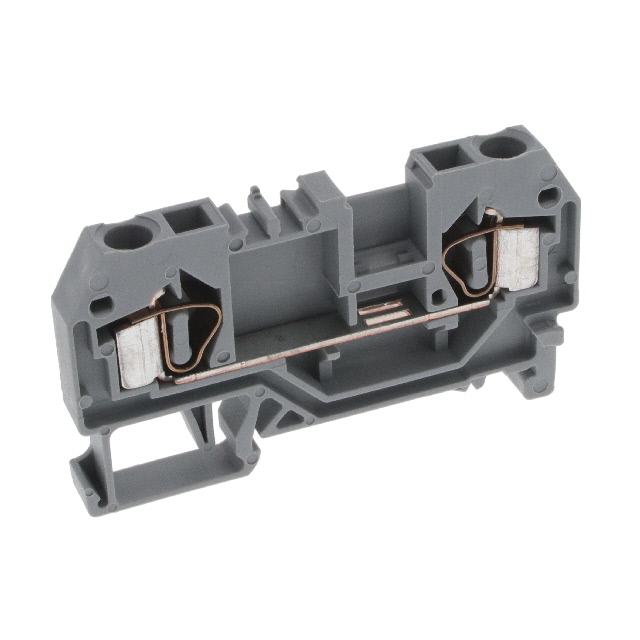

WAGO Corporation 281-901	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring

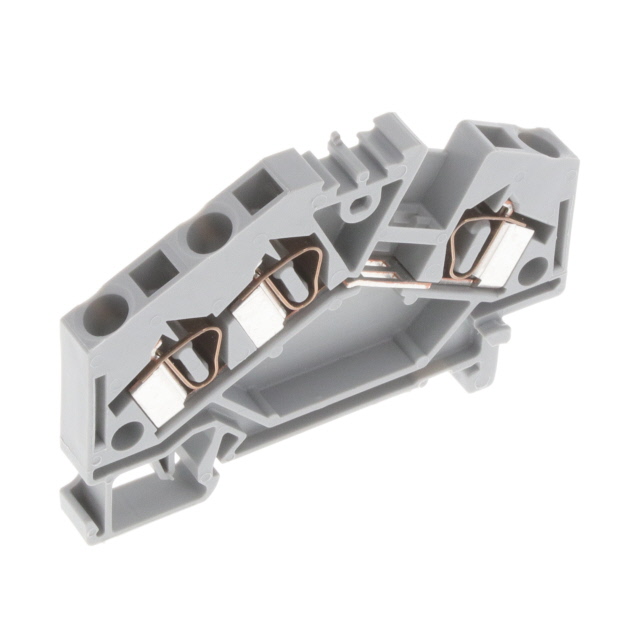

WAGO Corporation 281-631	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm	800 V	28 AWG	12 AWG		Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring

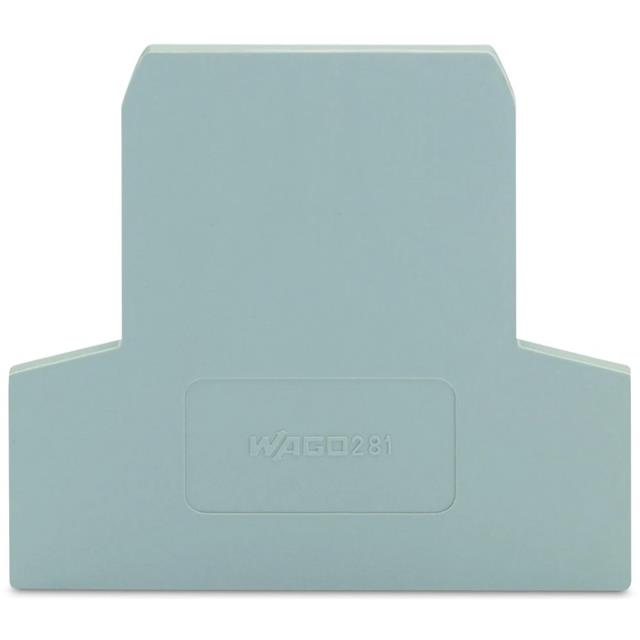

WAGO Corporation 281-311								Gray						End Plate		Terminal Blocks

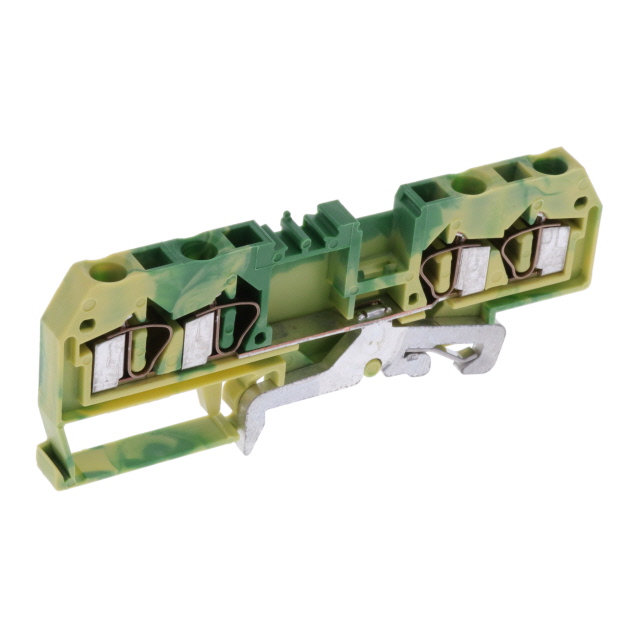

WAGO Corporation 281-657	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm		28 AWG	12 AWG	4	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Ground Earth	Push In Spring

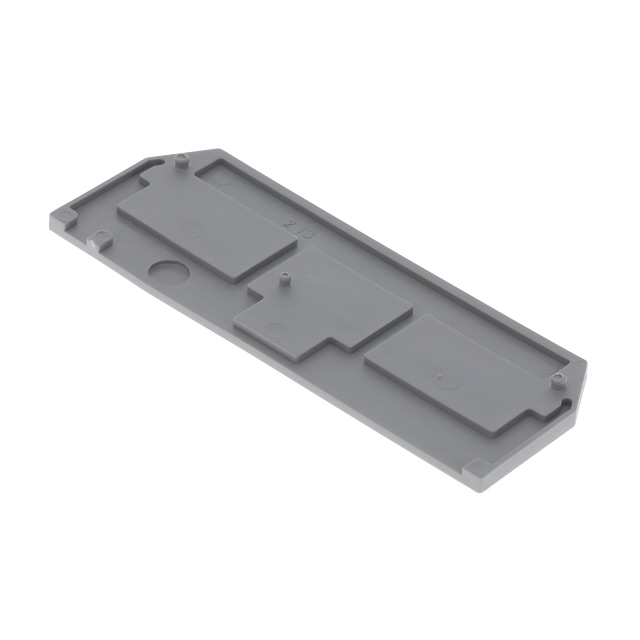

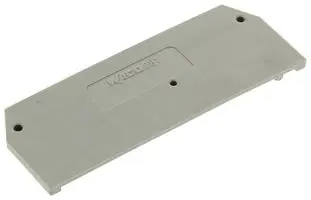

WAGO Corporation 281-324								Gray						End Plate		Terminal Blocks

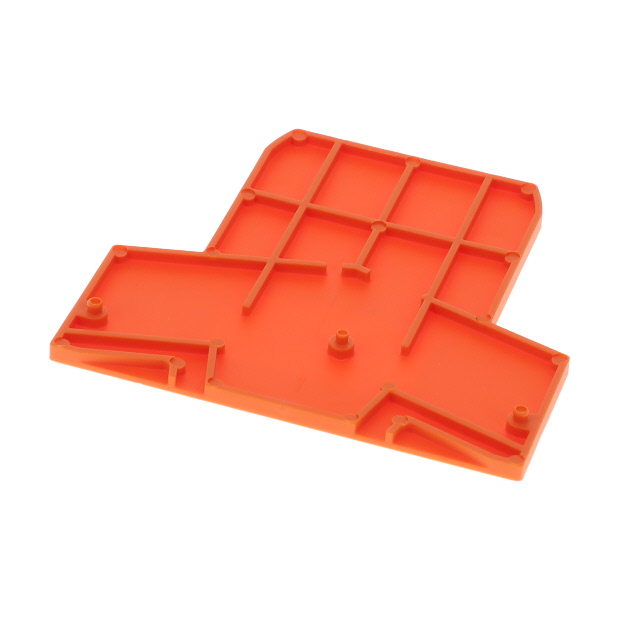

WAGO Corporation 281-309														End Plate		Terminal Blocks

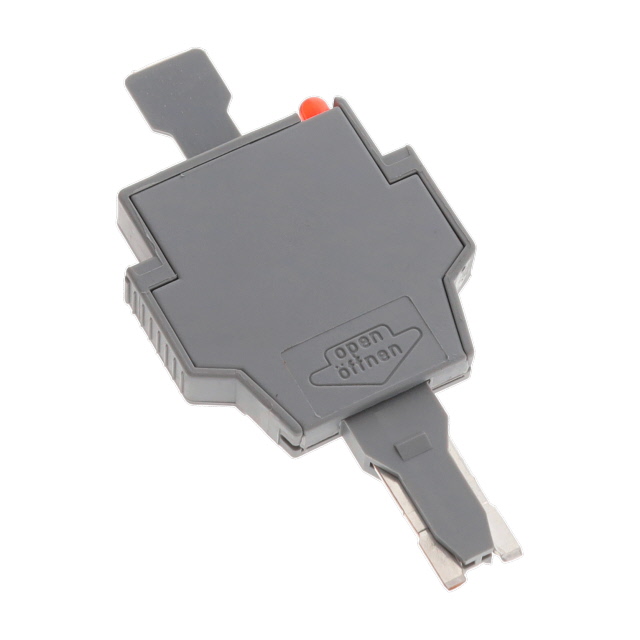

WAGO Corporation 281-512/281-501								Gray						Fuse Plug		Din Rail Terminal Blocks

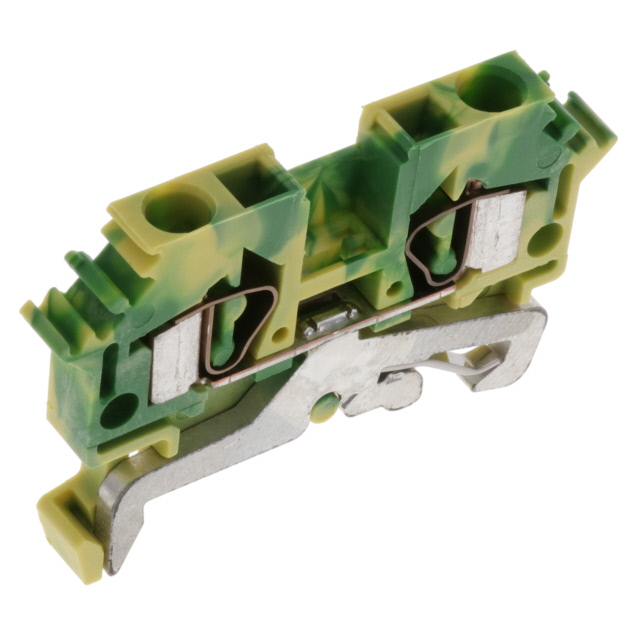

WAGO Corporation 281-607	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm		28 AWG	12 AWG	2	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Ground Earth	Push In Spring

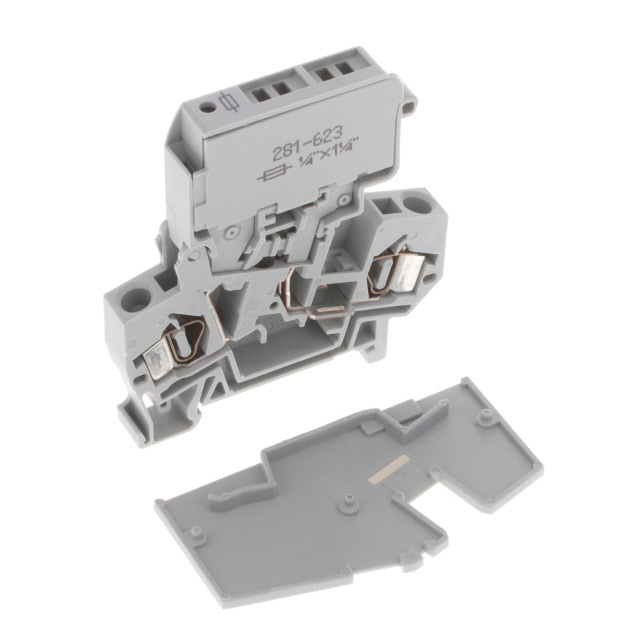

WAGO Corporation 281-623	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	10 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring			0.25 in	Fuse
WAGO Corporation 281-611/281-418	Nylon 6/6 Polyamide (PA66)	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	8 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring		5 mm	20 mm	Fuse	Neon Lamp
