630-47W Series
Manufacturer: EDAC Inc.
Catalog

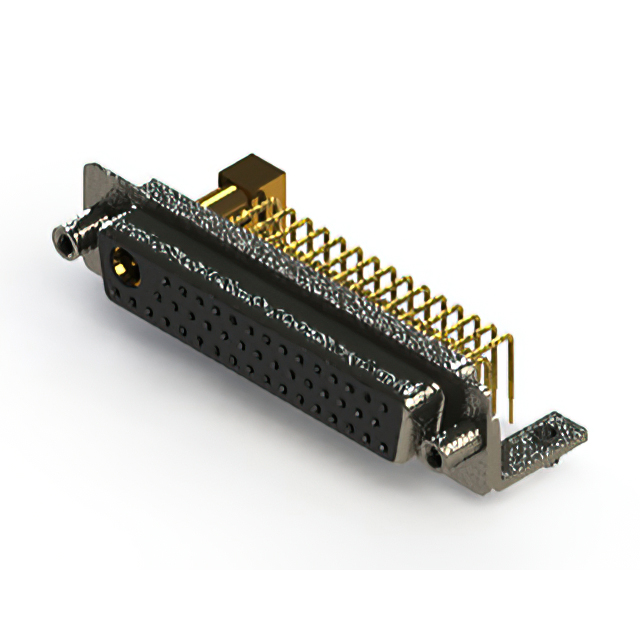

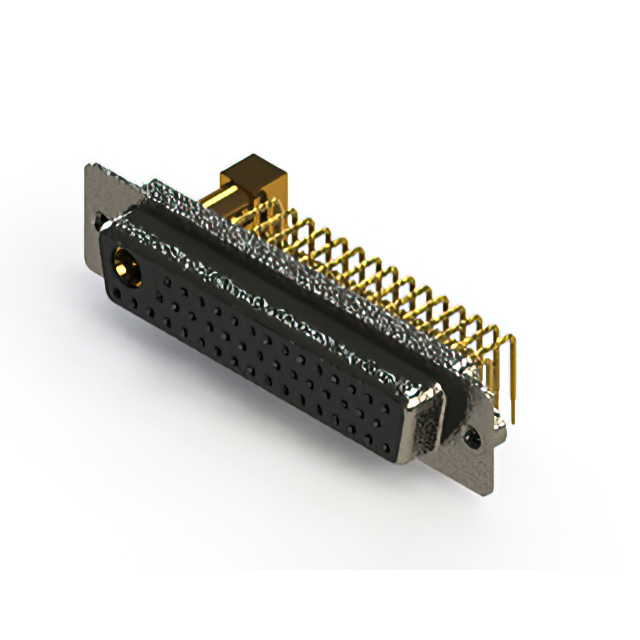

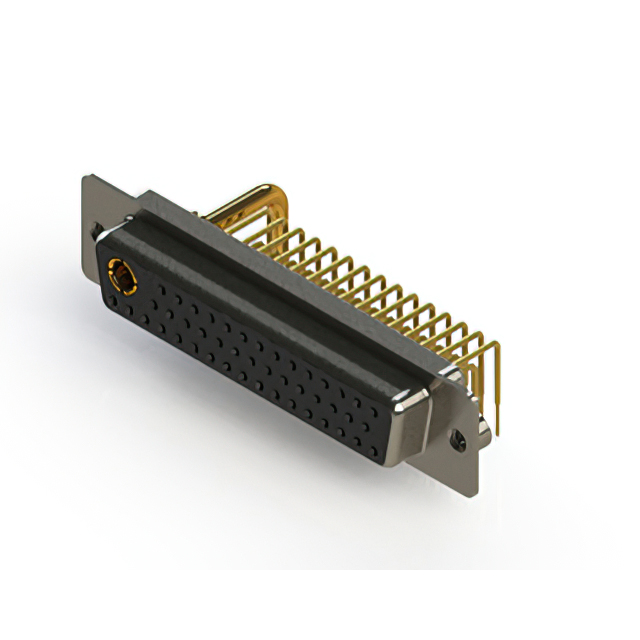

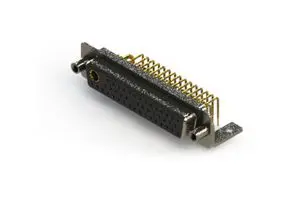

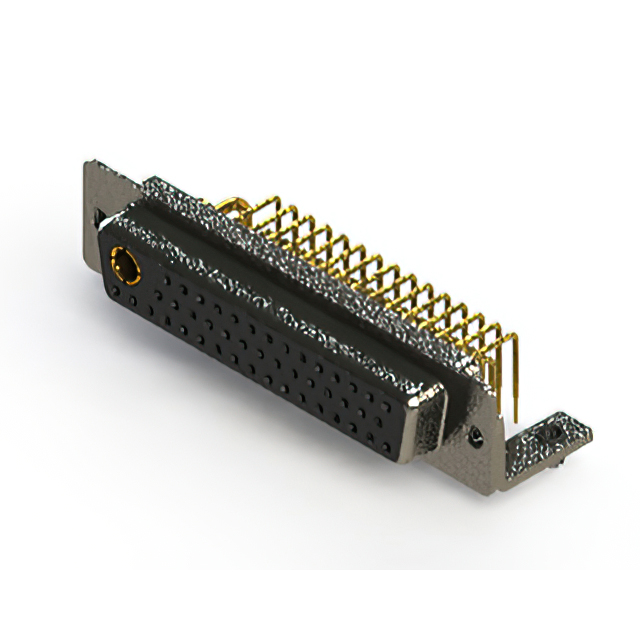

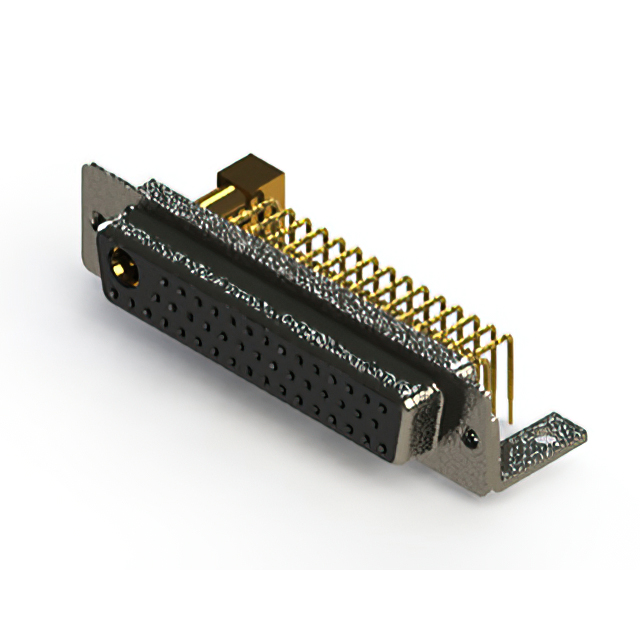

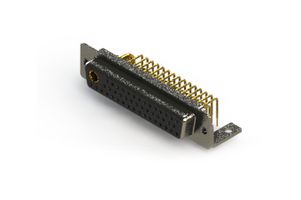

CONN D-SUB RCPT 47POS R/A SOLDER
...
| Part | Contact Material | Color | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Current Rating (Amps) | Flange Feature | Flange Feature | Termination | Number of Rows [custom] | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Contact Type | Contact Finish | Material Flammability Rating | Number of Positions | Features | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | Right Angle Through Hole | 20A 5A | Housing/Shell | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Signal and Power | Gold | UL94 V-0 | 47 | |||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | Right Angle Through Hole | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Board Lock Mounting Brackets | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | 10A 5A | M3 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Signal and Power | Gold | UL94 V-0 | 47 | Mounting Brackets | Flash | ||||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | Housing/Shell | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Flash | |||||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | 10A 5A | Housing/Shell | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Signal and Power | Gold | UL94 V-0 | 47 | Board Lock Mounting Brackets | Nickel Plated Steel | Flash | ||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | Right Angle Through Hole | 20A 5A | Housing/Shell | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Signal and Power | Gold | UL94 V-0 | 47 | Mounting Brackets | ||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | Right Angle Through Hole | Housing/Shell (M3) | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Mounting Brackets | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | M3 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Mounting Brackets | Nickel Plated Steel | Flash | ||||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | Housing/Shell | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Mounting Brackets | Flash | ||||
 EDAC Inc. | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | 9.4 mm | 0.37 in | Right Angle Through Hole | 4-40 | Solder | 3 | Combo D-Sub | 47W1 D DD | 5 | Receptacle Female Sockets | Coax Signal | Gold | UL94 V-0 | 47 | Board Lock | Flash |
