ECQ-UAAF684 Series

Catalog

CAP FILM 0.68UF 20% 275VAC RAD

Part	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Package / Case	Voltage Rating - AC	Ratings	Capacitance	Mounting Type	Dielectric Material	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing

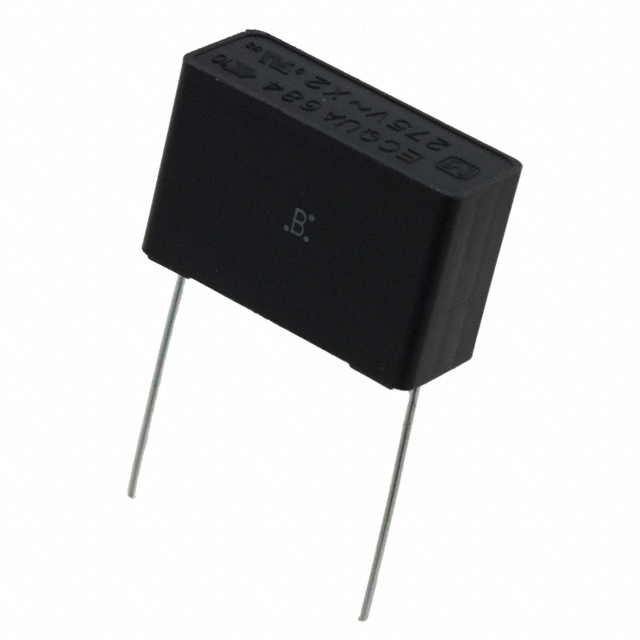

Panasonic Industrial Automation Sales ECQ-UAAF684M	PC Pins	26 mm	0.394 in	10 mm	1.024 in	EMI RFI Suppression	Radial	275 V	X2	680 nF	Through Hole	Metallized Polypropylene (PP)	20 %	-40 °C	110 °C	0.689 in	17.5 mm	22.5 mm	0.886 in
Panasonic Industrial Automation Sales ECQ-UAAF684T1	PC Pins	26 mm	0.394 in	10 mm	1.024 in	Automotive EMI RFI Suppression	Radial	275 V	AEC-Q200 X2	680 nF	Through Hole	Metallized Polypropylene (PP)	10 %	-40 °C	110 °C	0.689 in	17.5 mm	22.5 mm	0.886 in
Panasonic Industrial Automation Sales ECQ-UAAF684TA	PC Pins	26 mm	0.394 in	10 mm	1.024 in	Automotive EMI RFI Suppression	Radial	275 V	AEC-Q200 X2	680 nF	Through Hole	Metallized Polypropylene (PP)	10 %	-40 °C	110 °C	0.689 in	17.5 mm	22.5 mm	0.886 in

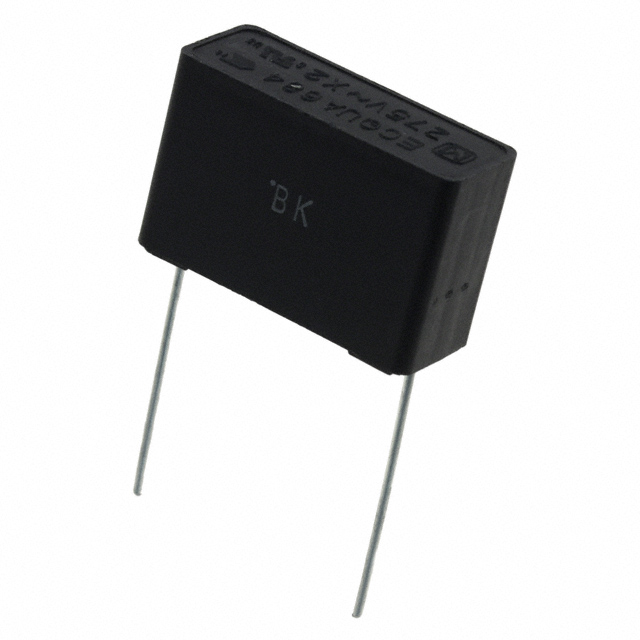

Panasonic Industrial Automation Sales ECQ-UAAF684K	PC Pins	26 mm	0.394 in	10 mm	1.024 in	EMI RFI Suppression	Radial	275 V	X2	680 nF	Through Hole	Metallized Polypropylene (PP)	10 %	-40 °C	110 °C	0.689 in	17.5 mm	22.5 mm	0.886 in
