GTS448S Series
Manufacturer: CW Industries
Beta
⌘K

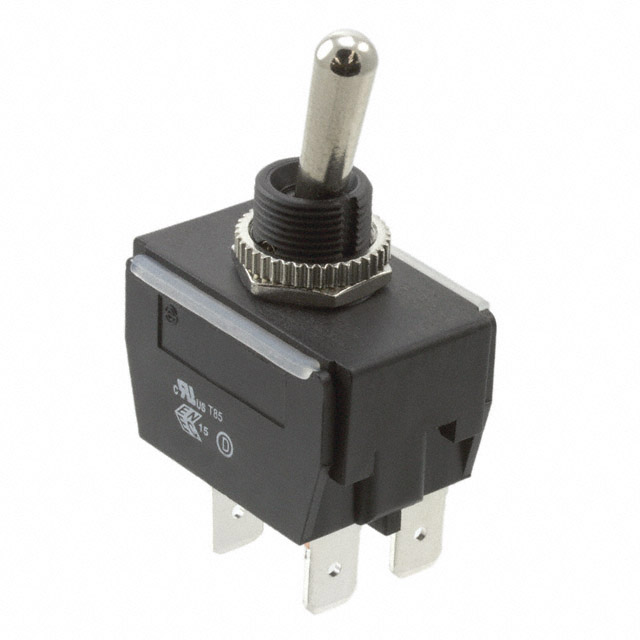

SWITCH TOGGLE DPST-NO 16A 250V
| Part | Electrical Life | Actuator Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Circuit | Panel Cutout Dimensions [diameter] | Mounting Type | Current Rating (Amps) | Switch Function | Illumination | Termination Style | Bushing Thread | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Cycles | Standard Round | 250 V | 0 °C | 85 °C | 17.5 mm | DPST-NO | 12.2 mm Dia | Panel Mount | 16 A | Off-Mom | Non-Illuminated | Quick Connect - 0.250" (6.3mm) | 15/32-32 | IP56 - Dust Protected Water Resistant |
