DB25 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN D-SUB PLUG 25POS VERT SLDR
| Part | Dielectric Material | Color | Voltage Rating | Contact Material | Contact Finish Thickness | Contact Finish | Current Rating (Amps) | Connector Type | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style | Flange Feature | Mounting Type | Termination | Number of Positions | Number of Rows [custom] | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Backset Spacing | Backset Spacing | Flange Feature | Shell Material, Finish | Cable Exit | Compatible D-Sub Size | Shielding | Cable Type | Material | Primary Material | Accessory Type | Compatible Shell Size | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | Flash | Gold | 3 A | Plug Male Pins | Board Lock Grounding Indents | B DB | 3 | D-Sub | Board Side (4-40) | Through Hole | Solder | 25 | 2 | UL94 V-0 | |||||||||||||||||

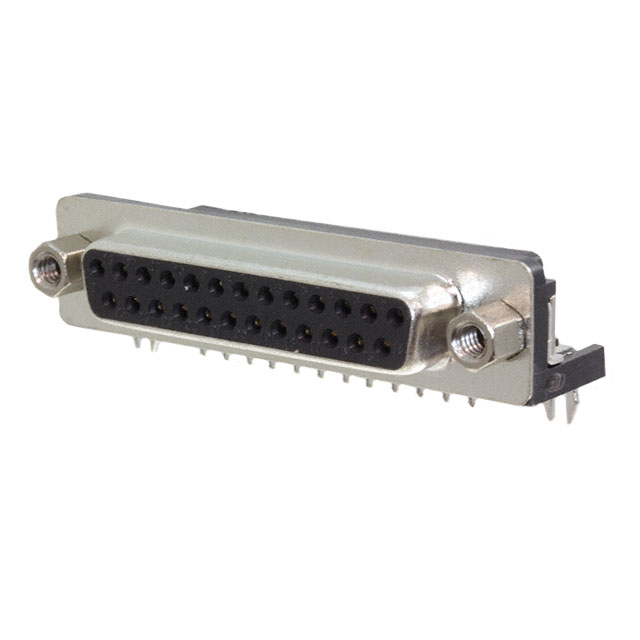

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | Gold | 3 A | Receptacle Female Sockets | Board Lock | B DB | 3 | D-Sub | Housing/Shell | Right Angle Through Hole | Solder | 25 | 2 | UL94 V-0 | 85 °C | -20 ░C | Stamped | 0.319 in | 8.1 mm | 4-40 | ||||||||||||
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | Flash | Gold | 3 A | Receptacle Female Sockets | B DB | 3 | D-Sub | Cable Side (4-40) | Free Hanging (In-Line) | 25 | 2 | UL94 V-0 | 105 ░C | -55 C | Stamped | ||||||||||||||||
 Adam Tech | Thermoplastic Glass Filled | Black | 300 VAC | Phosphor Bronze | Gold | 5 A | Receptacle Female Sockets | Board Lock | B DB | 3 | D-Sub | Housing/Shell | Right Angle Surface Mount | Solder | 25 | 2 | UL94 V-0 | 105 ░C | -55 C | 4-40 | Nickel Plated Steel | ||||||||||||||

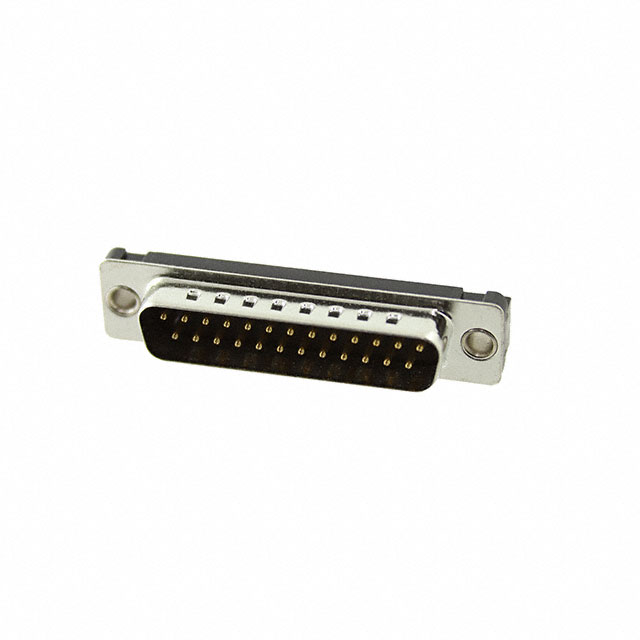

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Brass | Flash | Gold | 3 A | Plug Male Pins | Grounding Indents | B DB | 3 | D-Sub | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 25 | 2 | UL94 V-0 | 105 ░C | -55 C | Stamped | Nickel Plated Steel | ||||||||||||||
 Adam Tech | Black | Mating Screws 4-40 | 25 | 180 ° | 25pos HD44pos | Unshielded | Round | Acrylonitrile Butadiene Styrene (ABS) | Plastic | Two Piece Backshell | B | ||||||||||||||||||||||||

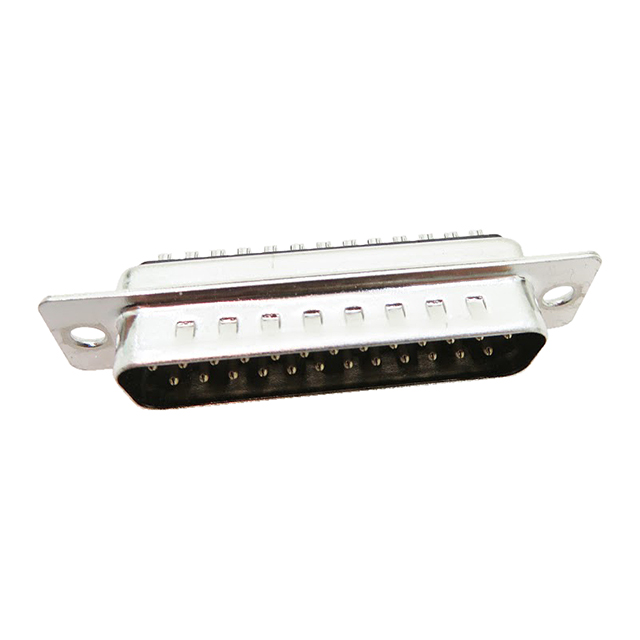

 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | Flash | Gold | Plug Male Pins | Grounding Indents | B DB | 3 | D-Sub | Housing/Shell (Unthreaded) | Through Hole | Solder | 25 | 2 | UL94 V-0 | 125 °C | -65 ░C | Steel | |||||||||||||||
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | Flash | Gold | 3 A | Plug Male Pins | Grounding Indents | B DB | 3 | D-Sub | Cable Side (4-40) | Free Hanging (In-Line) | 25 | 2 | UL94 V-0 | 105 ░C | -55 C | Stamped | |||||||||||||||
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | Phosphor Bronze | Flash | Gold | 5 A | Plug Male Pins | Grounding Indents | B DB | 3 | D-Sub | Housing/Shell | Through Hole | Solder | 25 | 2 | UL94 V-0 | 125 °C | -65 ░C | 4-40 | ||||||||||||||
 Adam Tech | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Phosphor Bronze | Flash | Gold | 5 A | Receptacle Female Sockets | B DB | 3 | D-Sub | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | IDC Ribbon Cable | 25 | 2 | UL94 V-0 | 125 °C | -65 ░C | 30 AWG | 27.5 AWG |
