PPPC171 Series

Catalog

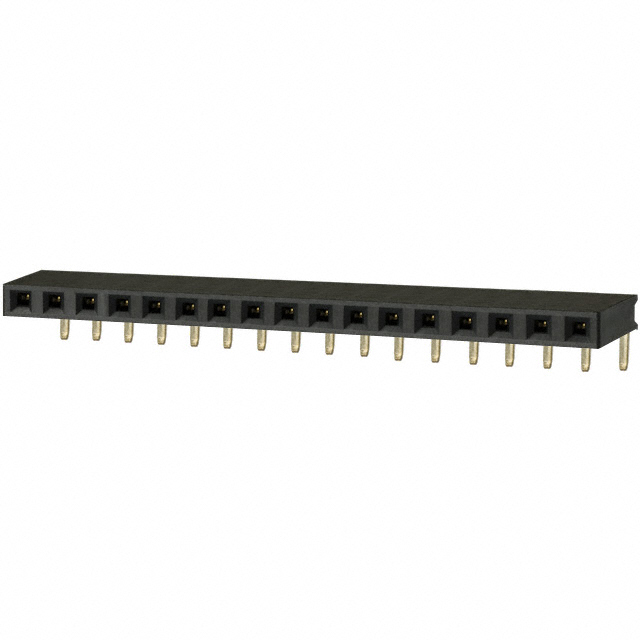

CONN HDR 17POS 0.1 GOLD PCB R/A

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Number of Rows	Contact Type	Voltage Rating	Mounting Type	Fastening Type	Termination	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]
Sullins Connector Solutions PPPC171LGBN	Polyester	Square	Flash	Phosphor Bronze	UL94 V-0	Black	All	1	Female Socket	250 V	Right Angle Through Hole	Push-Pull	Solder	0.1 in	2.54 mm	Gold	0.124 in	3.15 mm	Flash	3 A	Header	0.1 "	2.54 mm	Gold	-40 C	105 ░C
