MMI-M1RSG Series
Manufacturer: Adam Tech
Beta
⌘K
CONN RCPT FMALE 10POS GOLD SLDR
| Part | Ingress Protection | Insert Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Color | Primary Material | Voltage Rating | Mounting Type | Orientation [custom] | Contact Finish - Mating | Termination | Fastening Type | Shell Material | Number of Positions | Current Rating (Amps) | Contact Material | Shell Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

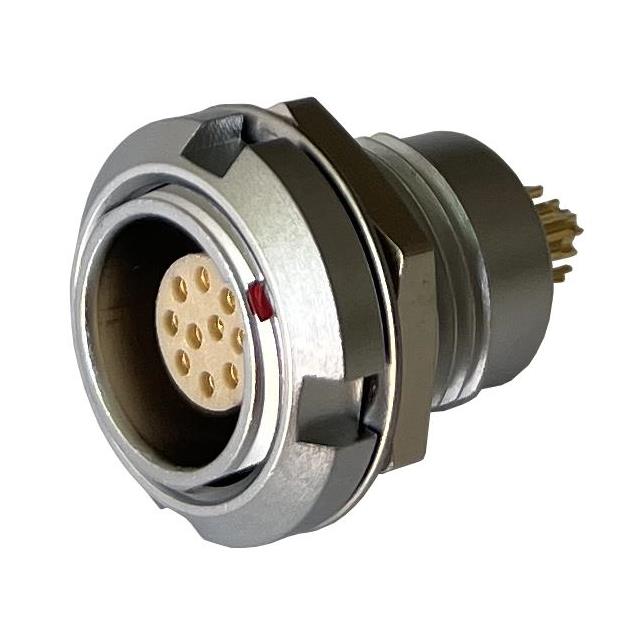

 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 200 V | Panel Mount Through Hole | G | Gold | Solder | Push-Pull | Brass | 10 | 2 A | Brass | Chrome | Bulkhead - Rear Side Nut |
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 300 VDC | Panel Mount | G | Gold | Push-Pull | Brass | 9 A | Brass | Chrome | Bulkhead - Rear Side Nut | ||
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 200 V | Panel Mount | G | Gold | Push-Pull | Brass | 10 | 2 A | Brass | Chrome | Bulkhead - Rear Side Nut | |

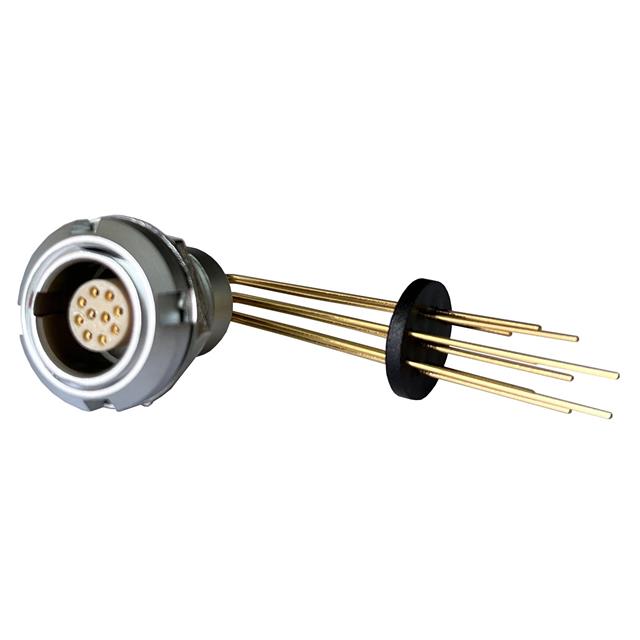

 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 200 V | Panel Mount Right Angle Through Hole | G | Gold | Solder | Push-Pull | Brass | 10 | 2 A | Brass | Chrome | Bulkhead - Rear Side Nut |
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 250 V | Panel Mount Through Hole | G | Gold | Solder | Push-Pull | Brass | 4 | 8 A | Brass | Chrome | Bulkhead - Rear Side Nut |

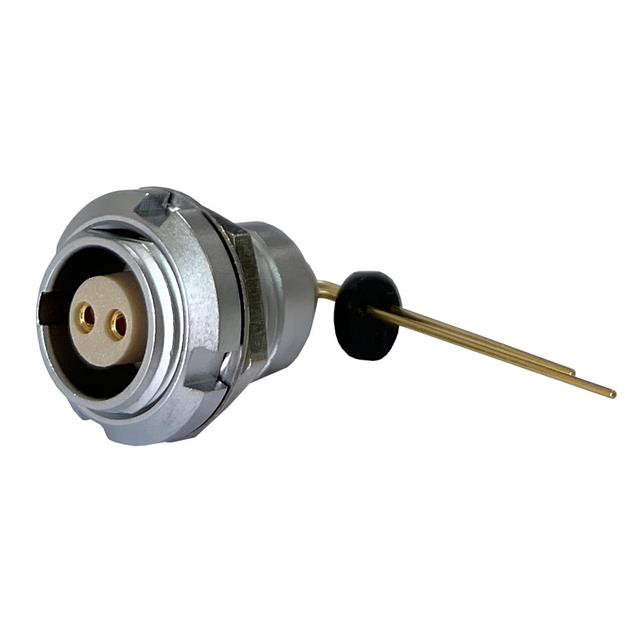

 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 300 VDC | Panel Mount Right Angle Through Hole | G | Gold | Solder | Push-Pull | Brass | 2 | 9 A | Brass | Chrome | Bulkhead - Rear Side Nut |
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 250 V | Panel Mount | G | Gold | Push-Pull | Brass | 5 | 7 A | Brass | Chrome | Bulkhead - Rear Side Nut | |

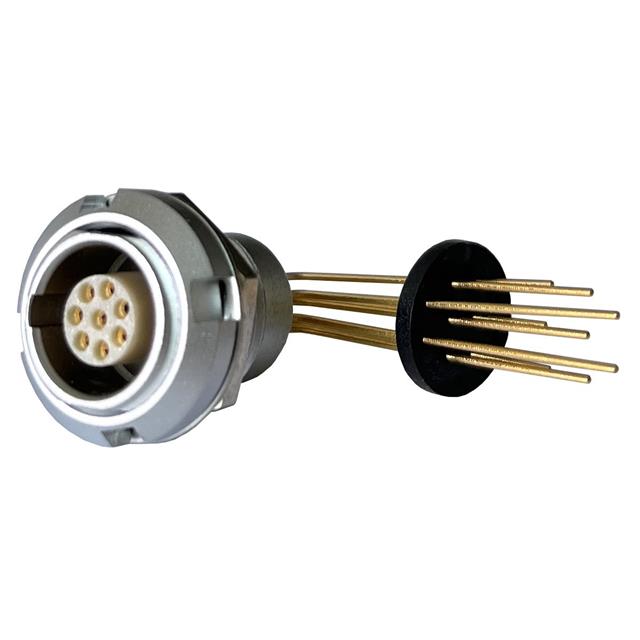

 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 200 V | Panel Mount Through Hole | G | Gold | Solder | Push-Pull | Brass | 8 | 5 A | Brass | Chrome | Bulkhead - Rear Side Nut |
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 250 V | Panel Mount Through Hole | G | Gold | Solder | Push-Pull | Brass | 5 | 7 A | Brass | Chrome | Bulkhead - Rear Side Nut |
 Adam Tech | IP50 - Dust Protected | Polyphenylene Sulfide (PPS) | Receptacle Female Sockets | -55 C | 150 °C | Unshielded | Silver | Metal | 300 VDC | Panel Mount Through Hole | G | Gold | Solder | Push-Pull | Brass | 9 A | Brass | Chrome | Bulkhead - Rear Side Nut |
