9218-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

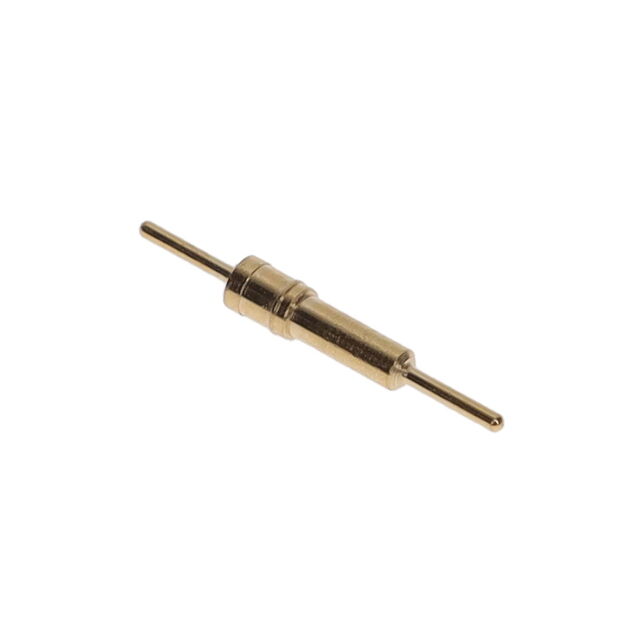

CONN PC PIN
| Part | Length - Overall | Length - Overall | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 11.18 mm | 0.44 in | Non-Insulated | 0.46 mm | 0.018 in | 0.245 in | 6.22 mm | Press-Fit | 0.12 " | 3.05 mm | Wire | 1.45 mm | 0.057 in | Through Hole | Brass Alloy | 0.057 in | 1.45 mm | 50 µin | 1.27 µm | 0.018 in | 0.46 mm | Gold | PC Pin |
