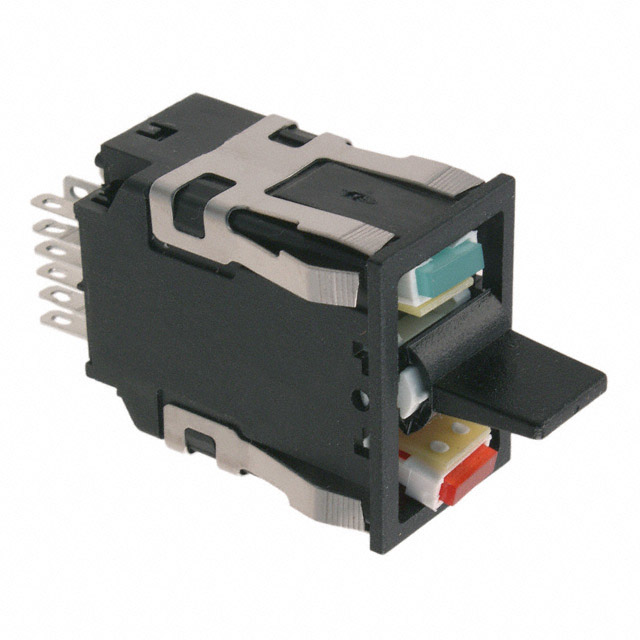

AML25 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH TOGGLE SPDT 3A 125V
| Part | Termination Style | Termination Style | Termination Style | Switch Function | Illumination Voltage (Nominal) | Voltage Rating - DC | Circuit | Electrical Life | Actuator Type | Illumination Type, Color | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Illumination | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | Mom-Off-Mom | 24 V | 24 V | SPDT | 25000 Steps | Paddle | Green LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
 Honeywell Sensing and Productivity Solutions | PC Pin | Mom-Off-Mom | 15 VDC | 125 VDC | SPDT | 25000 Steps | Paddle | Green/Red LED | 125 V | 100 mA | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |||
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | Mom-Off-Mom | 24 V | 24 V | SPDT | 25000 Steps | Paddle | LED Yellow | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | Mom-Off-Mom | 24 V | 125 VDC | SPDT | 25000 Steps | Paddle | Green/Red LED | 125 V | 100 mA | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
Honeywell Sensing and Productivity Solutions | PC Pin | On-On | 5 VDC | 125 VDC | DPDT | 25000 Steps | Paddle | LED Red | 125 V | 100 mA | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |||
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 24 V | 24 V | SPDT | 25000 Steps | Paddle | Green LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | On-On-Mom | 24 V | 24 V | DPDT | 25000 Steps | Paddle | Green/Red LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
 Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | On-On-On | 24 V | 24 V | SP3T | 25000 Steps | Paddle | Green/Red LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | Jumper needed to achieve triple throw |
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 24 V | 24 V | DPDT | 25000 Steps | Paddle | Green/Red LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm | |
Honeywell Sensing and Productivity Solutions | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom | 24 V | 24 V | SPDT | 25000 Steps | Paddle | Green/Red LED | 125 V | 2 A 3 A | Panel Mount Snap-In | Illuminated | 19.05 mm | 28.98 mm |
