2177367 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

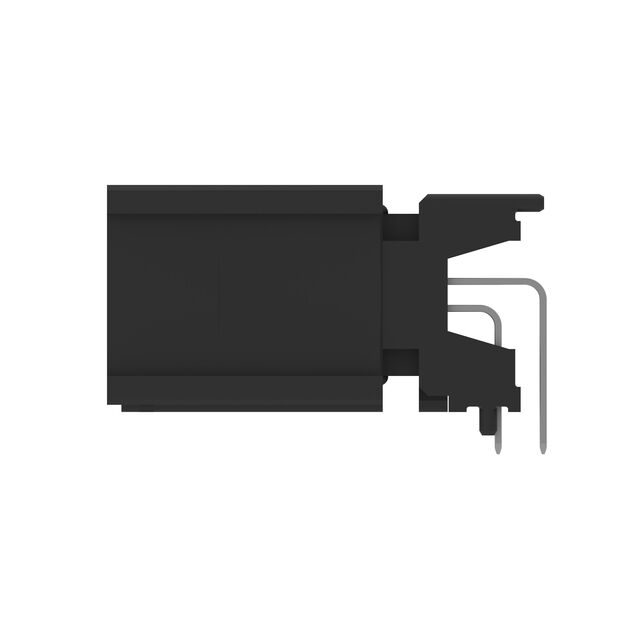

1-2177367-3
| Part | Contact Shape | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Style | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Voltage Rating | Termination | Insulation Color | Number of Positions Loaded | Shrouding | Fastening Type | Contact Type | Contact Finish - Post | Mounting Type | Insulation Height | Insulation Height | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||||
 TE Connectivity Raychem Cable Protection | Square | Board Guide | -40 °C | 105 ░C | 2 | Board to Cable/Wire | 0.071 in | 1.8 mm | UL94 V-0 | 12 V | Solder | Black | All | Shrouded - 4 Wall | Latch Holder | Tab | Tin | Through Hole Right Angle | 0.667 in | 16.95 mm | 20 | Header |
