C091 11H006 Series

Catalog

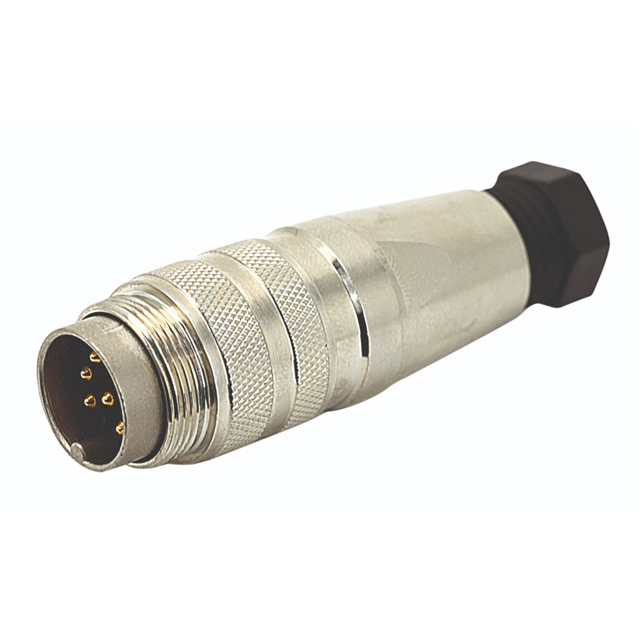

CONN PLUG HSNG MALE 6POS INLINE

Part	Shell Size - Insert	Features	Number of Positions	Contact Shape	Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Mounting Type	Housing Color	Shell Material	Material Flammability Rating	Connector Type	Ingress Protection	Orientation	Contact Size	Fastening Type	Includes	Note	Shielding	Contact Type
Amphenol Tuchel Industrial C091 11H006 000 2	M16-6	Backshell Cable Clamp Coupling Nut	6	Circular	For Male Pins	Nickel	-40 C	100 °C	Thermoplastic	Free Hanging (In-Line)	Silver	Die Cast	UL94 V-0	Plug Housing	IP65 IP67 IP69K	Keyed	1.5 mm	Threaded	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers	Contacts Not Included	Shielded	Crimp
Amphenol Tuchel Industrial C091 11H006 001 4	M16-6	Backshell Coupling Nut Strain Relief	6	Circular	For Male Pins	Nickel	-40 C	100 °C	Thermoplastic	Free Hanging (In-Line)	Silver	Zinc Die Cast	UL94 V-0	Plug Housing	IP68 IP69K	Keyed		Threaded		Contacts Not Included	Shielded	Crimp
Amphenol Tuchel Industrial C091 11H006 001 2	M16-6	Backshell Cable Clamp Coupling Nut	6	Circular	For Male Pins	Nickel	-40 C	100 °C	Thermoplastic	Free Hanging (In-Line)	Silver	Die Cast	UL94 V-0	Plug Housing	IP65 IP67 IP69K	Keyed	1.5 mm	Threaded	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 2 pc Cable Clamp 2 Screws 2 Washers	Contacts Not Included	Shielded	Crimp
