86130262 Series

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Finish - Mating	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Termination	Material Flammability Rating	Contact Type	Insulation Material	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Features	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Contact Material	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]

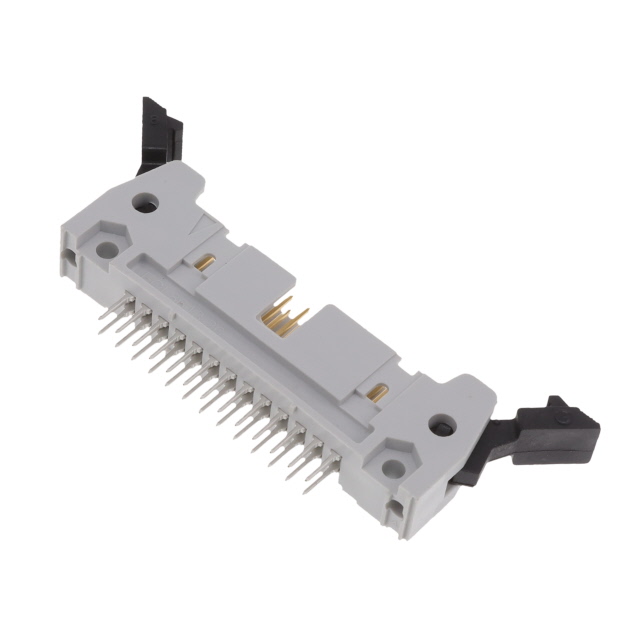

Amphenol ICC (FCI) 86130262114345E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	4.35 mm	0.171 in	Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26	0.713 in	18.1 mm	2	0.1 in	2.54 mm	Gray	Through Hole	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.693 in	17.6 mm	Circular	All	Tin	Copper Alloy	Header
Amphenol ICC (FCI) 86130262114385E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	4.35 mm	0.171 in	Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26	0.713 in	18.1 mm	2	0.1 in	2.54 mm	Gray	Through Hole	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.693 in	17.6 mm	Circular	All	Tin	Copper Alloy	Header
Amphenol ICC (FCI) 86130262324355E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	2.9 mm	0.114 in	Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26	0.656 in	16.65 mm	2	0.1 in	2.54 mm	Gray	Through Hole	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.693 in	17.6 mm	Circular	All	Tin	Copper Alloy	Header
Amphenol ICC (FCI) 86130262323385E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	2.79 mm		Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26			2	0.1 in	2.54 mm	Gray	Through Hole Right Angle	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.344 in	8.75 mm	Circular	All	Tin	Copper Alloy	Header	0.11 in
Amphenol ICC (FCI) 86130262124345E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	2.9 mm	0.114 in	Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26	0.656 in	16.65 mm	2	0.1 in	2.54 mm	Gray	Through Hole	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.693 in	17.6 mm	Circular	All	Tin	Copper Alloy	Header

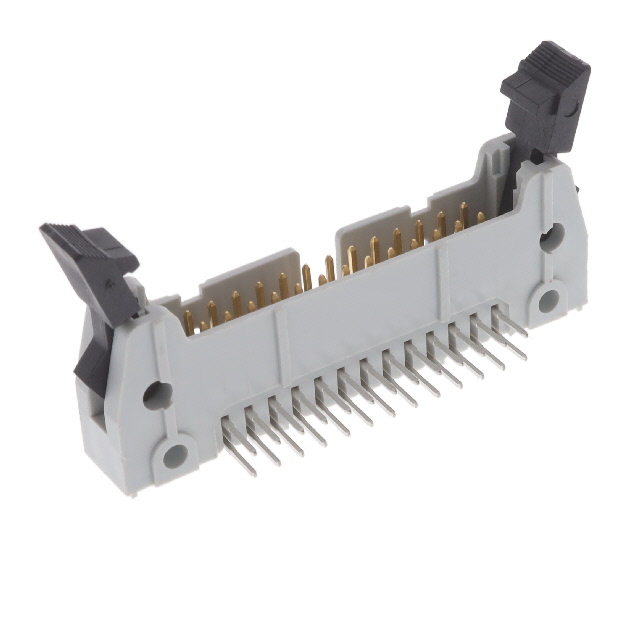

Amphenol ICC (FCI) 86130262113345E1LF	2.54 mm	0.1 in	250 VDC	Gold or Gold-Palladium	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long			Solder	UL94 V-0	Male Pin	Polybutylene Terephthalate (PBT)	6.1 mm	0.24 in	26			2	0.1 in	2.54 mm	Gray	Through Hole Right Angle	-55 °C	125 °C	Board to Cable/Wire	Keying Slot	0.344 in	8.75 mm	Circular	All	Tin	Copper Alloy	Header	0.165 in	4.19 mm
