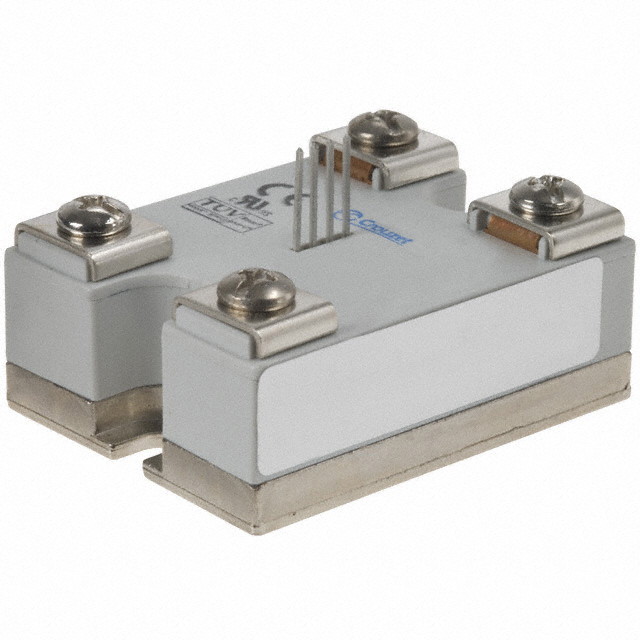

841403 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 40A 24-280V
| Part | Package / Case | Approval Agency | Load Current | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Circuit | Termination Style | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Hockey Puck | CE CSA cURus TUV | 40 A | 80 °C | -40 C | 24 V | 280 V | Chassis Mount | 17 V | 32 VDC | SPST-NO (1 Form A) x 2 | Quick Connect - 0.250" (6.3mm) | AC |
 Sensata-Crydom | Hockey Puck | CE CSA cURus TUV | 40 A | 80 °C | -40 C | 24 V | 280 V | Chassis Mount | 4 V | 15 V | SPST-NO (1 Form A) x 2 | Screw Terminal | AC |
