LMZ23603 Series

3A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Catalog

3A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Part	Mounting Type	Features	Applications	Package / Case	Supplier Device Package	Voltage - Input (Min) [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Frequency - Switching	Main Purpose	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Utilized IC / Part
Texas Instruments LMZ23603TZE/NOPB	Surface Mount	UVLO	ITE (Commercial)	TO-PMOD-7 Power Module	TO-PMOD-7	6 V	Non-Isolated PoL Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	3 A	125 °C	-40 °C	0.8 V	6 V	1	92 %	36 V

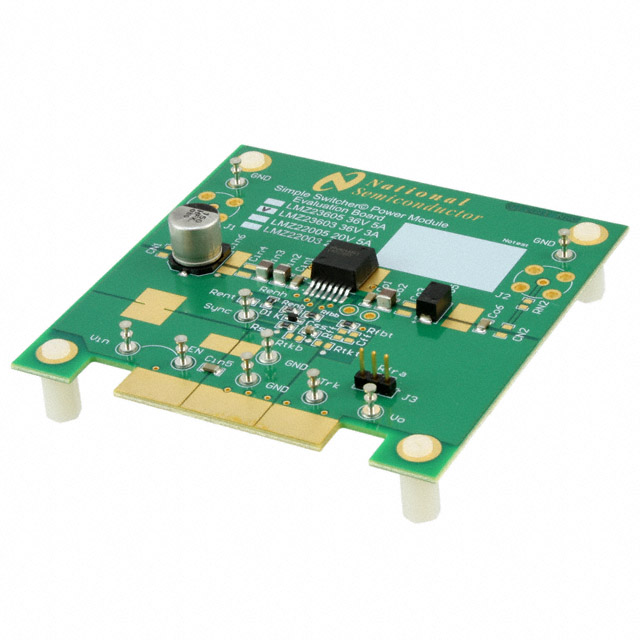

Texas Instruments LMZ23603EVAL/NOPB																						3.3 V	3 A	36 V	6 V	Board(s)	812 kHz	DC/DC Step Down	Non-Isolated	1	Fully Populated	Buck	LMZ23603
Texas Instruments LMZ23603TZX/NOPB	Surface Mount	UVLO	ITE (Commercial)	TO-PMOD-7 Power Module	TO-PMOD-7	6 V	Non-Isolated PoL Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	3 A	125 °C	-40 °C	0.8 V	6 V	1	92 %	36 V

Catalog

3A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage

Key Features

• Integrated Shielded InductorSimple PCB LayoutFrequency Synchronization Input (650 kHz to 950kHz)Flexible Startup Sequencing Using External Soft-start, Tracking and Precision EnableProtection Against Inrush Currents and FaultsSuch as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to125°CSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsFully Enabled for WEBENCH Power DesignerPin Compatible WithLMZ22005/LMZ23605/LMZ22003Performance BenefitsHigh Efficiency Reduces System HeatGenerationTested to EN55022 Class B(1)See AN-2125 (SNVA473) and layout forinformation on device under test.VIN= 24 V, VO= 3.3 V, IO= 3 ALow component count, only 5 externalcomponentsLow output voltage rippleUses PCB as heat sink, no airflowrequiredElectrical Specifications18-W maximum total output powerUp to 3-A output currentInput voltage range 6 V to 36 VOutput voltage range 0.8 V to 6 VEfficiency up to 92%Integrated Shielded InductorSimple PCB LayoutFrequency Synchronization Input (650 kHz to 950kHz)Flexible Startup Sequencing Using External Soft-start, Tracking and Precision EnableProtection Against Inrush Currents and FaultsSuch as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to125°CSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsFully Enabled for WEBENCH Power DesignerPin Compatible WithLMZ22005/LMZ23605/LMZ22003Performance BenefitsHigh Efficiency Reduces System HeatGenerationTested to EN55022 Class B(1)See AN-2125 (SNVA473) and layout forinformation on device under test.VIN= 24 V, VO= 3.3 V, IO= 3 ALow component count, only 5 externalcomponentsLow output voltage rippleUses PCB as heat sink, no airflowrequiredElectrical Specifications18-W maximum total output powerUp to 3-A output currentInput voltage range 6 V to 36 VOutput voltage range 0.8 V to 6 VEfficiency up to 92%

Description

The LMZ23603 SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load. The LMZ23603 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ23603 can accept an input voltage rail between 6 V and 36 V and deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ23603 only requires two external resistors and three external capacitors to complete the power solution. The LMZ23603 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and allows start-up into a prebiased output. The sync input allows synchronization over the 650-kHz to 950-kHz switching frequency range. The LMZ23603 SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load. The LMZ23603 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ23603 can accept an input voltage rail between 6 V and 36 V and deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ23603 only requires two external resistors and three external capacitors to complete the power solution. The LMZ23603 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and allows start-up into a prebiased output. The sync input allows synchronization over the 650-kHz to 950-kHz switching frequency range.
