327950 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

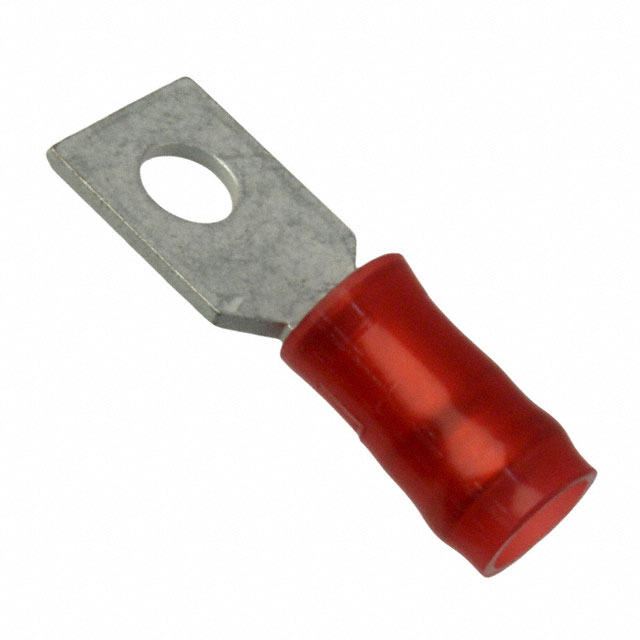

CONN TERM RECT TONG 16-22 AWG #5
| Part | Termination | Insulation | Length - Overall | Length - Overall | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness | Contact Material | Color | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Finish | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Features | Terminal Style | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Insulated | 0.855 in | 21.72 mm | 22 AWG | 16 AWG | 0.031 " | 0.79 mm | Copper | Red | 0.132 in | 3.35 mm | Tin | Rectangular Tongue | 7.04 mm | 0.277 in | Free Hanging (In-Line) | Serrated Termination | Single Stud Hole | 5 Stud |
