FM20B03VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

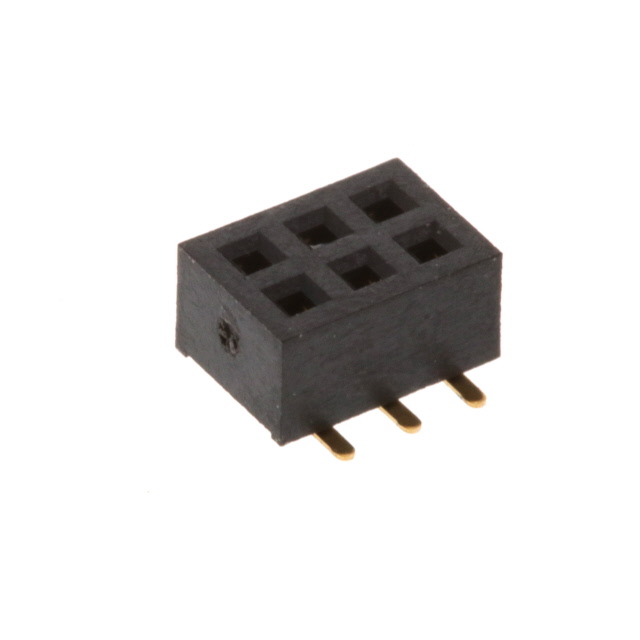

RECEPTACLE, SMT, DUAL ROW, 1.27
| Part | Contact Shape | Insulation Material | Contact Material | Termination | Pitch - Mating | Pitch - Mating | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Number of Positions | Mounting Type | Contact Type | Fastening Type | Contact Finish - Mating | Ingress Protection | Connector Type | Number of Rows [custom] | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Square | Nylon 6 Polyamide (PA6) | Copper Alloy | Solder | 1.27 mm | 0.05 in | Black | 0.05 in | 1.27 mm | All | 0.084 in | 2.14 mm | 6 | Surface Mount | Female Socket | Push-Pull | Gold | IP00 | Receptacle | 2 | Flash | -40 C | 105 ░C |
