BZF1 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Circuit	Mounting Type	Switch Function	Operating Force	Release Force	Voltage Rating - AC	Differential Travel	Differential Travel	Voltage Rating - DC	Overtravel	Overtravel	Features	Actuator Type	Operating Position	Operating Position

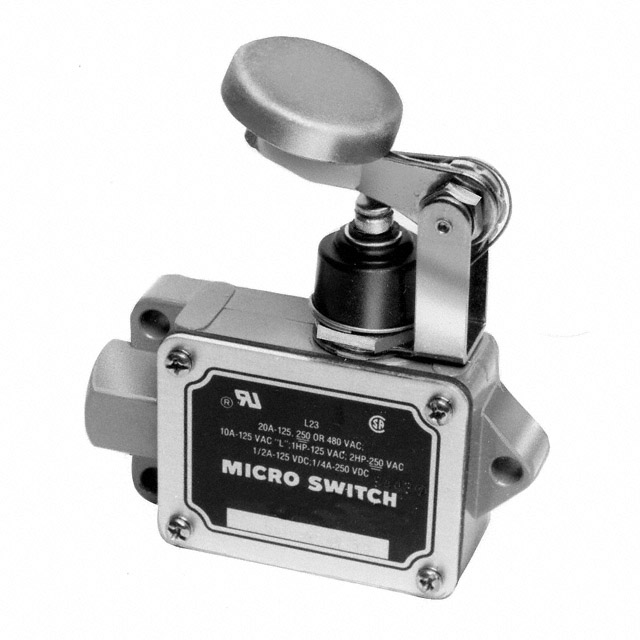

Honeywell Sensing and Productivity Solutions BZF1-2RN2-LH	Screw Terminal	15 A 500 mA	0.219 in	5.6 mm	SPDT	Chassis Mount	On-Mom	907 gf	113 gf	125 V	0.008 in	0.2 mm	125 VDC	5.6 mm	0.219 in	Actuator Seal Boot	Lever Roller

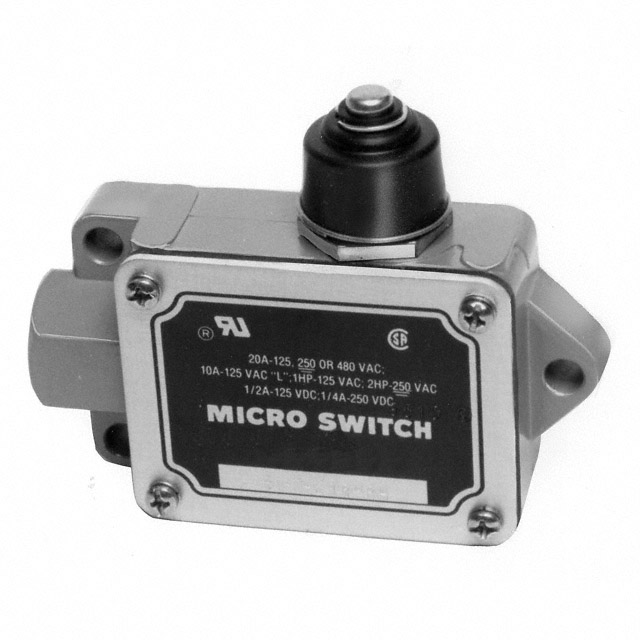

Honeywell Sensing and Productivity Solutions BZF1-2RN-RH	Screw Terminal	15 A 500 mA			SPDT	Chassis Mount	On-Mom	907 gf	227 gf	125 V	0.004 in	0.1 mm	125 VDC	5.6 mm	0.219 in	Actuator Seal Boot	Round (Pin Plunger)	2.078 in	52.8 mm
Honeywell Sensing and Productivity Solutions BZF1-2RN2-RH	Screw Terminal	15 A 500 mA	0.219 in	5.6 mm	SPDT	Chassis Mount	On-Mom	907 gf	227 gf	125 V	0.004 in	0.1 mm	125 VDC	5.6 mm	0.219 in	Steel Roller	Lever Roller
