LCA300 Series

Catalog

LUG TERMINAL, PAN-LUG LCA SERIES, CRIMP, COMPRESSION LUG, M10

Part	Contact Finish	Contact Material	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Type	Mounting Type	Wire Gauge	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Color	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Insulation	Terminal Style	Diameter - Ring ID	Diameter - Ring ID	Length - Overall

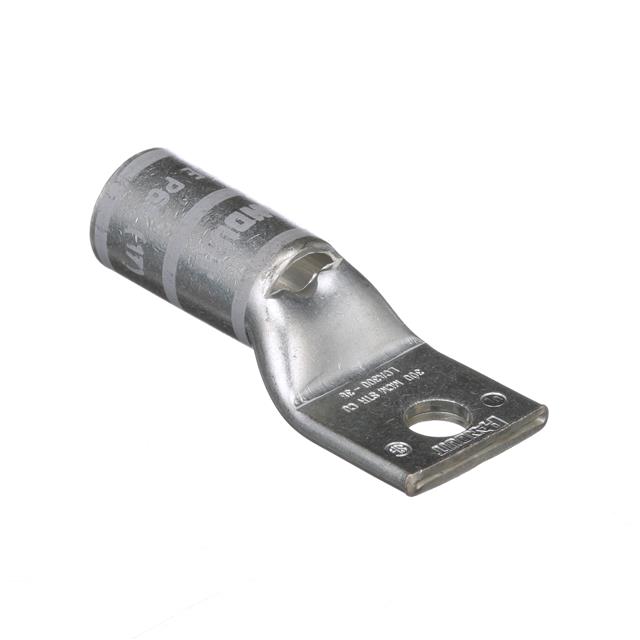

Panduit Corp LCA300-38-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm	10.41 mm	0.41 "	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	0.375 Stud	30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in	74.42 mm	2.93 in	Non-Insulated	Single Stud Hole

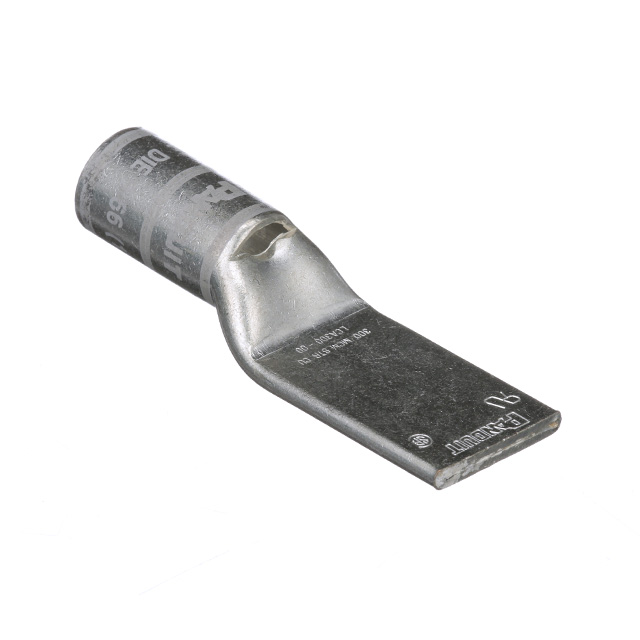

Panduit Corp LCA300-00-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm			Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)		30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in	93.73 mm	3.69 "	Non-Insulated	No Stud Hole

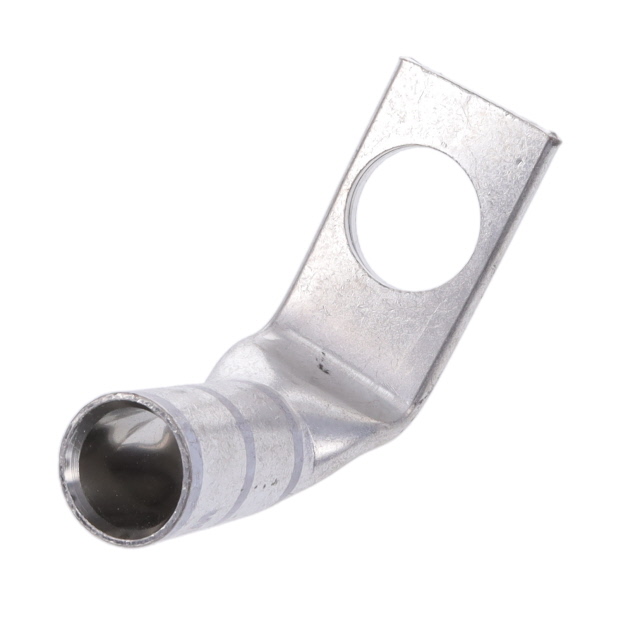

Panduit Corp LCA300-78F-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm	23.11 mm	0.91 "	Rectangular Tongue	Free Hanging (In-Line) Right Angle	300 MCM (kcmil)		30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in			Non-Insulated	Single Stud Hole
Panduit Corp LCA300-38H-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm	10.41 mm	0.41 "	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	0.375 Stud	30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in			Non-Insulated	Single Stud Hole
Panduit Corp LCA300-56F-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm			Rectangular Tongue	Free Hanging (In-Line) Right Angle	300 MCM (kcmil)	0.3125 Stud	30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in			Non-Insulated	Single Stud Hole	8.64 mm	0.34 in

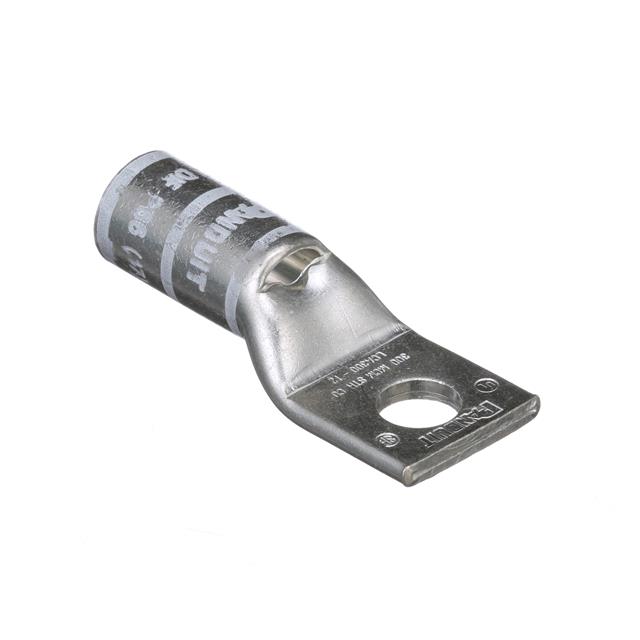

Panduit Corp LCA300-12-X	Electro-Tin	Copper	20.57 mm	0.81 in	0.65 in	16.51 mm			Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	0.5 Stud	30.23 mm	1.19 in	Barrel Crimp	White	4.06 mm	0.16 in		3.04 "	Non-Insulated	Single Stud Hole	13.46 mm	0.53 in	77.22 mm
