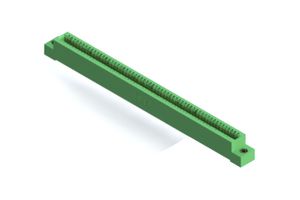

325-059 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 59POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Gender | Flange Feature | Color | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness | Card Thickness | Pitch | Pitch | Read Out | Card Type | Number of Rows | Termination | Contact Finish | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Female | Flush Mount M3 Threaded Insert Top Opening | Green | Copper Alloy | Through Hole | 59 | -65 ░C | 125 °C | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Non Specified - Single Edge | 1 | Solder Eyelet(s) | Gold | Cantilever | 59 |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Female | Green | Copper Alloy | Through Hole | 59 | -65 ░C | 125 °C | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Non Specified - Single Edge | 1 | Solder Eyelet(s) | Gold | Cantilever | 59 | |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Copper Alloy | Through Hole | 59 | -65 ░C | 125 °C | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Non Specified - Single Edge | 1 | Solder Eyelet(s) | Gold | Cantilever | 59 |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Copper Alloy | Through Hole | 59 | -65 ░C | 125 °C | 3.18 mm | 0.125 in | 0.1 " | 2.54 mm | Single | Non Specified - Single Edge | 1 | Wire Wrap | Gold | Cantilever | 59 |
