EVQ-PB Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Outline [y]	Outline [x]	Circuit	Switch Function	Mounting Type	Actuator Type	Features	Switch Travel	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Orientation	Contact Rating @ Voltage [x]	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Operating Force	Mechanical Life	Actuator Height off PCB, Vertical

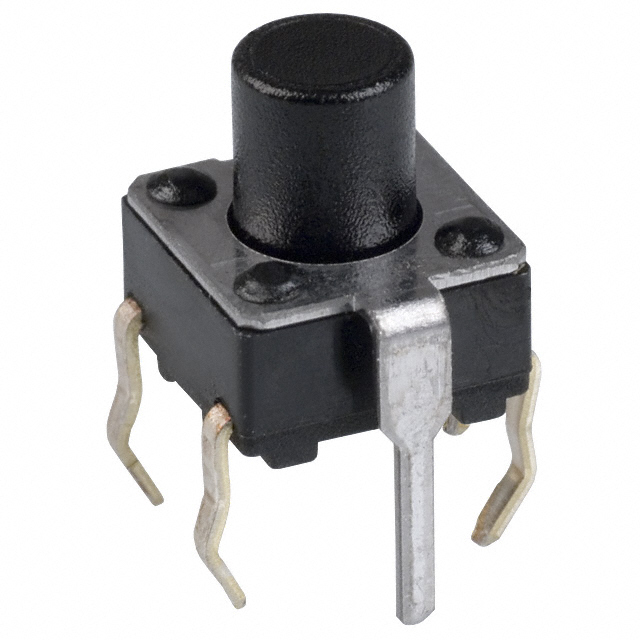

Panasonic Industrial Automation Sales EVQ-PBG07K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm	7 mm	PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	260 gf

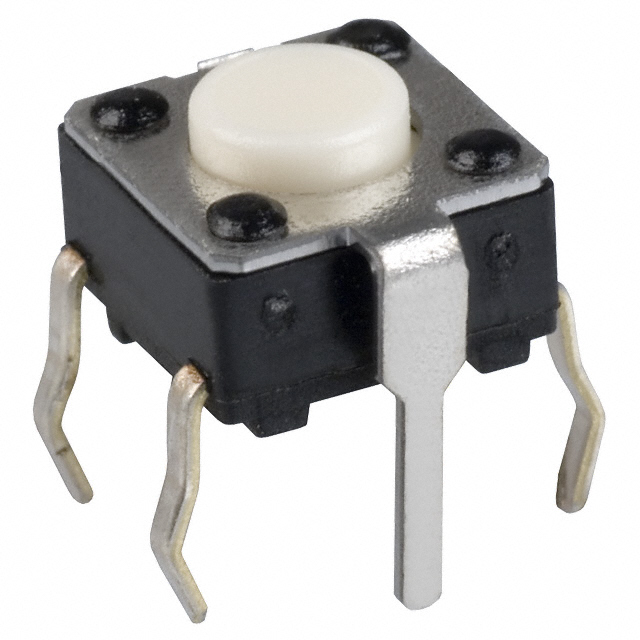

Panasonic Industrial Automation Sales EVQ-PBC04M	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm	4.3 mm	PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	100 gf	100000 Cycles

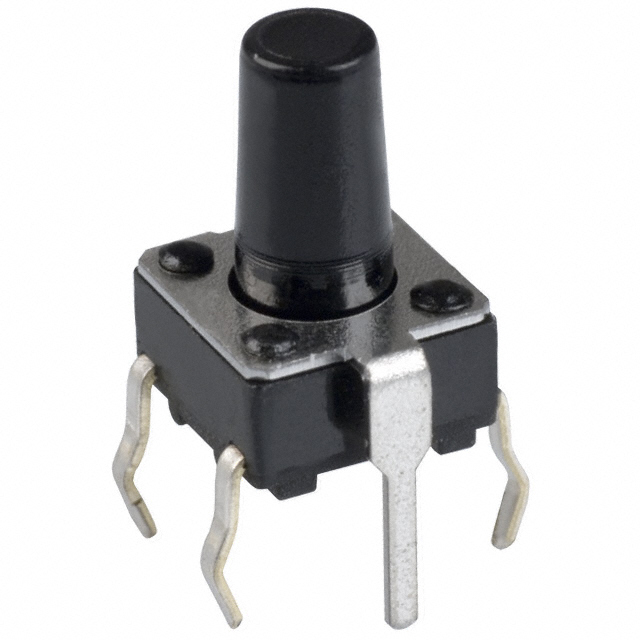

Panasonic Industrial Automation Sales EVQ-PBC09K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm		PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	100 gf	100000 Cycles	9.5 mm

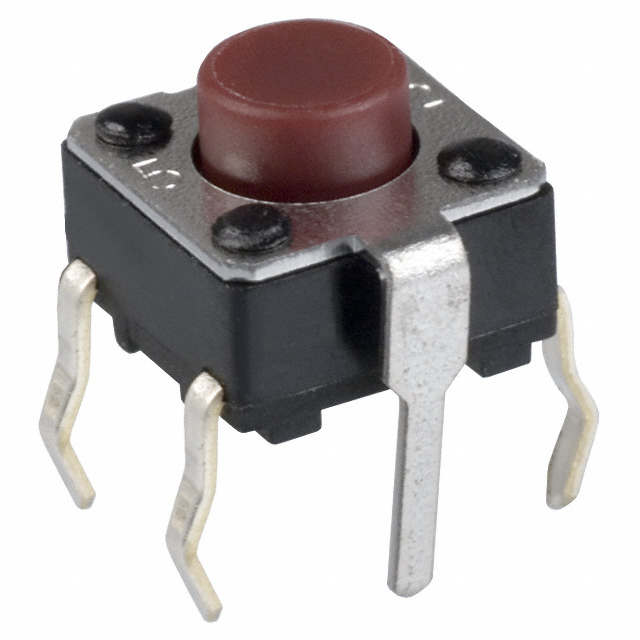

Panasonic Industrial Automation Sales EVQ-PBG05R	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm		PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	260 gf		5 mm
Panasonic Industrial Automation Sales EVQ-PBE05R	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm		PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated		100000 Cycles	5 mm
Panasonic Industrial Automation Sales EVQ-PBG09K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm		PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	260 gf		9.5 mm
Panasonic Industrial Automation Sales EVQ-PBC07K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm	7 mm	PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	100 gf	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PBE07K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm	7 mm	PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated		100000 Cycles
Panasonic Industrial Automation Sales EVQ-PBD09K	6 mm	6 mm	SPST-NO	Off-Mom	Through Hole	Standard	Grounding Pin	0.25 mm		PC Pin	Top Actuated	0.02 A 15 VDC	-20 C	70 °C	Non-Illuminated	130 gf	100000 Cycles	9.5 mm
