1211EA Series
Manufacturer: Murata Electronics
Beta
⌘K

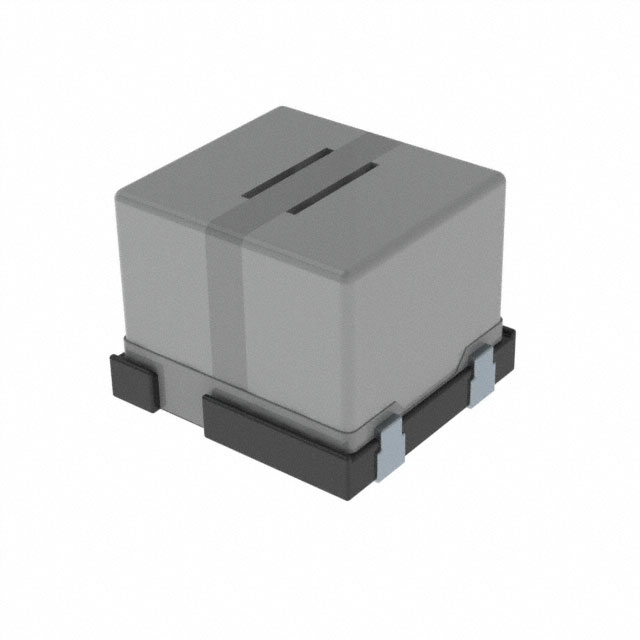

FIXED IND 10UH 2.8A 25 MOHM SMD
| Part | Tolerance | Shielding | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Inductance Frequency - Test | Package / Case | Inductance | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 20 % | Unshielded | 2.8 A | 10.4 mm | 10.7 mm | 0.409 in | 0.421 in | Ferrite | 5 A | 10 mm | 0.394 in | Drum Core Wirewound | 100 kHz | Nonstandard | 10 µH | AEC-Q200 | 85 °C | -40 C | 25 mOhm | Surface Mount |
