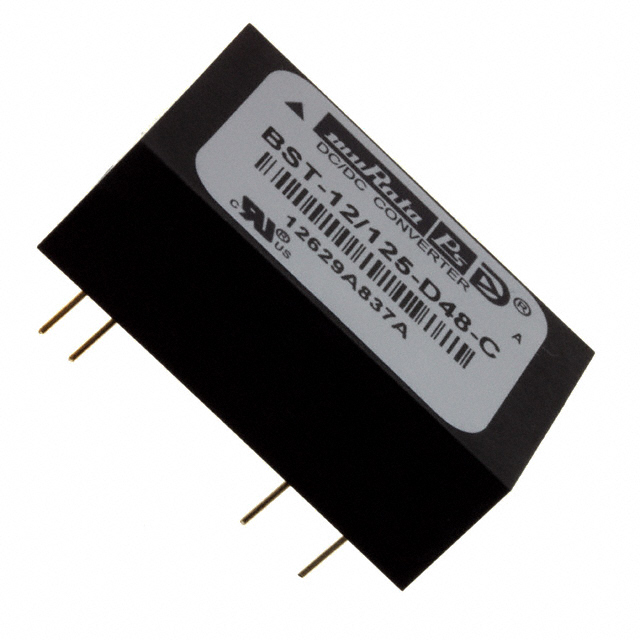

BST-12 Series
Manufacturer: Murata Electronics
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
| Part | Type | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Voltage - Input (Max) [Max] | Mounting Type | Applications | Voltage - Input (Min) [Min] | Efficiency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | Isolated Module | 12 V | 1000 V | 125 mA | 2 | 0.45 in | 0.8 " | 1.25 in | 31.8 mm | 20.3 mm | 11.4 mm | 3 W | 72 V | Through Hole | ITE (Commercial) | 18 V | 77 % | 8-DIP Module | -40 C | 75 ░C | -12 V |
