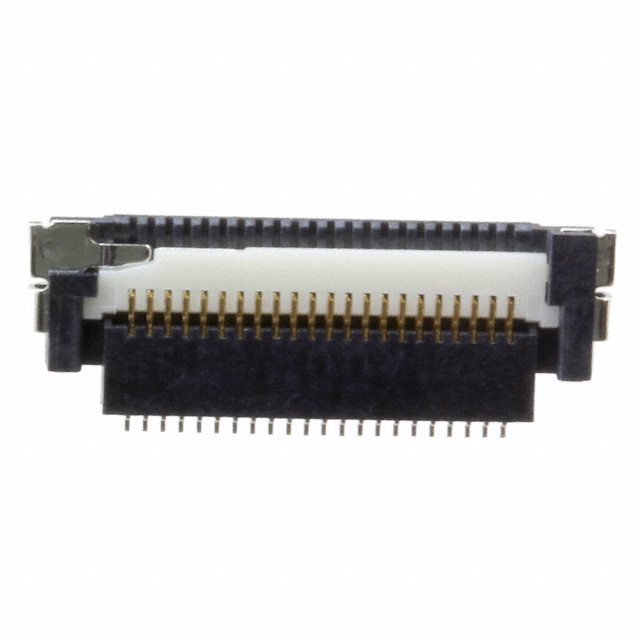

FA5S022H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN FPC BOTTOM 22POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Current Rating (Amps) | Mating Cycles | Actuator Material | Pitch | Pitch | Material Flammability Rating | Flat Flex Type | Voltage Rating | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Cable End Type | Height Above Board [z] | Height Above Board [z] | Features | Locking Feature | Mounting Type | Housing Material | FFC, FCB Thickness | Connector/Contact Type | Contact Material | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | White | Black | 0.8 A | 20 | Glass Filled Nylon Polyamide (PA) | 0.02 " | 0.5 mm | UL94 V-0 | FPC | 50 V | Gold | 85 °C | -40 C | Tapered | 1.45 mm | 0.057 in | Solder Retention Zero Insertion Force (ZIF) | Flip Lock | Right Angle Surface Mount | Glass Filled Liquid Crystal Polymer (LCP) | 0.3 mm | Contacts Bottom | Copper Alloy | Solder | 22 |
