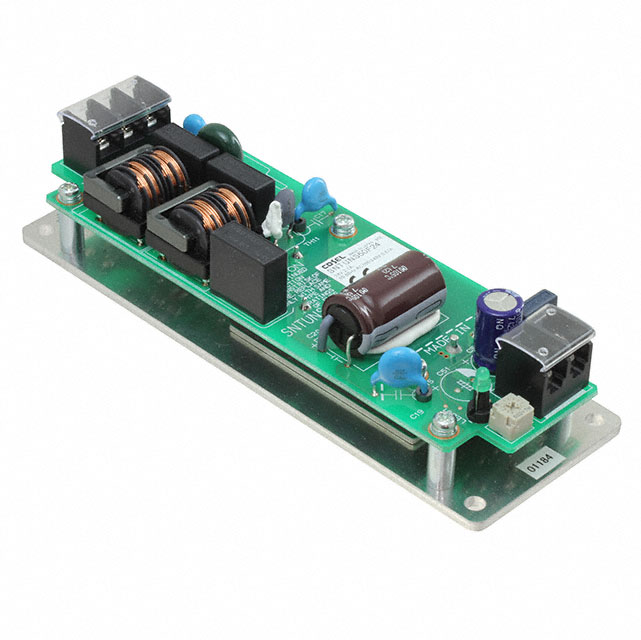

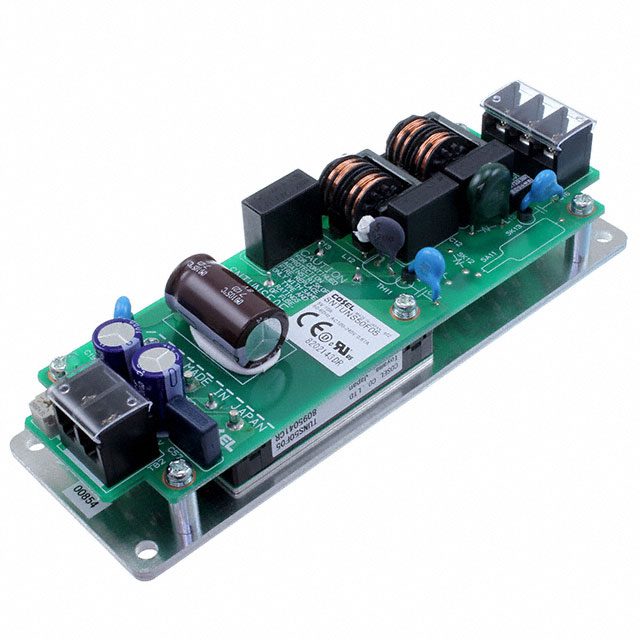

SNTUNS50 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 5V
| Part | Minimum Load Required | Number of Outputs | Efficiency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Approval Agency | Type | Applications | Voltage - Output 1 | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 1 | 78 % | Chassis Mount | 95 °C | -20 ░C | 10 A | CE cURus | Open Frame | ITE (Commercial) | 5 V | 3000 V | 1.42 " | 50 mm | 150.1 mm | 5.91 in | 36.1 mm | 1.97 in | |
 Cosel USA, Inc. | 1 | 83 % | Chassis Mount | 95 °C | -20 ░C | 4.2 A | CE cURus | Open Frame | ITE (Commercial) | 12 V | 3000 V | 1.42 " | 50 mm | 150.1 mm | 5.91 in | 36.1 mm | 1.97 in | |
 Cosel USA, Inc. | 1 | 84 % | Chassis Mount | 95 °C | -20 ░C | 2.1 A | CE cURus | Open Frame | ITE (Commercial) | 24 V | 3000 V | 1.42 " | 50 mm | 150.1 mm | 5.91 in | 36.1 mm | 1.97 in |
