QJ4025 Series

Catalog

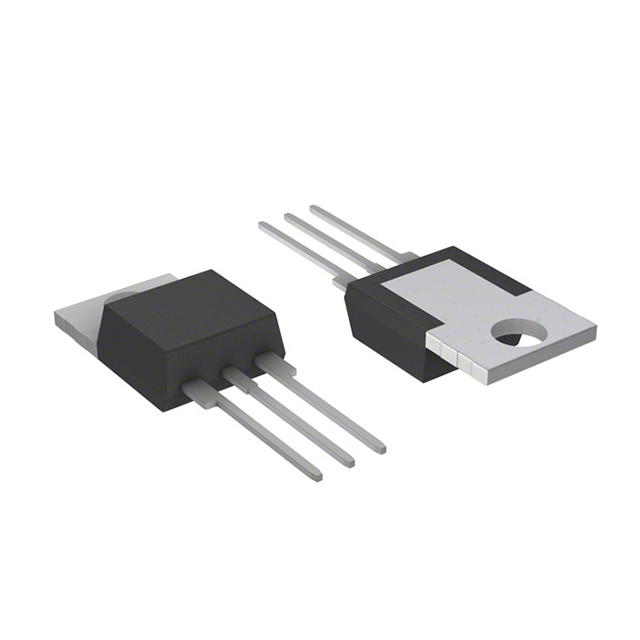

TRIAC ALTERNSTR 400V 25A TO220AB

Part	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max) [Max]	Configuration	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Supplier Device Package	Mounting Type	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Triac Type
Littelfuse/Commercial Vehicle Products QJ4025RH5TP	50 mA	150 °C	-40 °C	25 A	Single	50 mA	TO-220-3	TO-220AB	Through Hole	400 V	208 A 250 A	1.3 V	Alternistor - Snubberless
