325-074 Series
Manufacturer: EDAC Inc.
Beta
⌘K

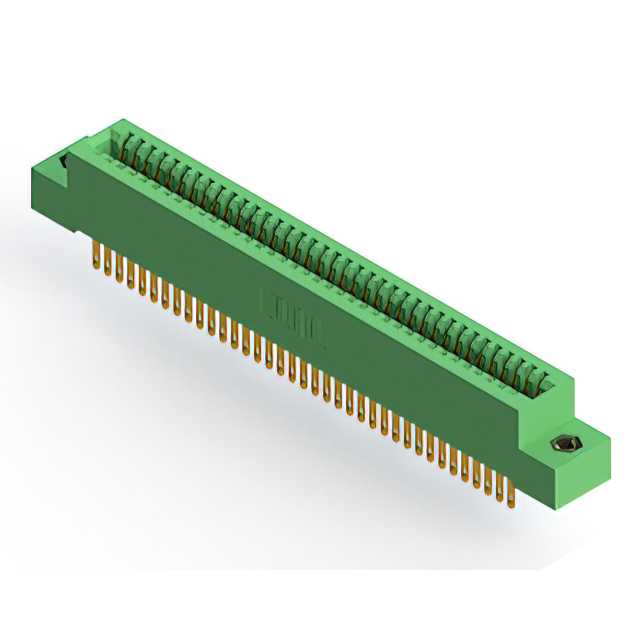

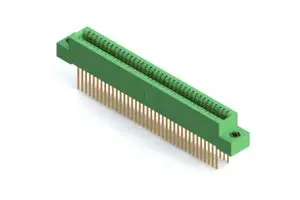

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 74 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Contact Type | Card Thickness | Card Thickness | Card Type | Mounting Type | Gender | Read Out | Number of Rows [custom] | Color | Pitch | Pitch | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Finish | Number of Positions/Bay/Row | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 74 | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | Through Hole | Female | Dual | 2 | Green | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Flush Mount M3 Threaded Insert Top Opening | Gold | 37 | Solder Eyelet(s) |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 74 | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | Through Hole | Female | Dual | 2 | Green | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 37 | Solder Eyelet(s) |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 74 | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | Through Hole | Female | Dual | 2 | Green | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | Gold | 37 | Solder Eyelet(s) | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 74 | Cantilever | 3.18 mm | 0.125 in | Non Specified - Dual Edge | Through Hole | Female | Dual | 2 | Green | 0.1 " | 2.54 mm | Copper Alloy | 0.25 Ám | 10 Áin | -65 ░C | 125 °C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 37 | Wire Wrap |
