R11200 Series

Catalog

SMC / STRAIGHT PLUG CLAMP TYPE C

Part	Dielectric Material	Mating Cycles	Voltage Rating	Center Contact Plating	Body Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Cable Group	Mounting Type	Frequency - Max [Max]	Housing Color	Fastening Type	Number of Ports	Shield Termination	Connector Type	Impedance	Connector Style	Center Contact Material	Contact Termination

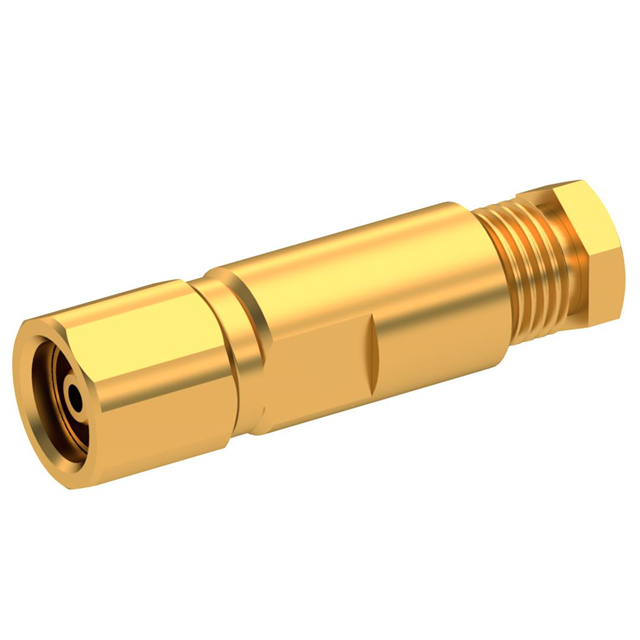

Radiall USA, Inc. R112003000	Polytetrafluoroethylene (PTFE)	500	250 V	Gold	Brass	Gold	100 °C	-55 C	196	RG-178	Free Hanging (In-Line)	10 GHz	Gold	Threaded	1	Clamp	Female Socket Plug	50 Ohms	SMC	Beryllium Copper	Solder

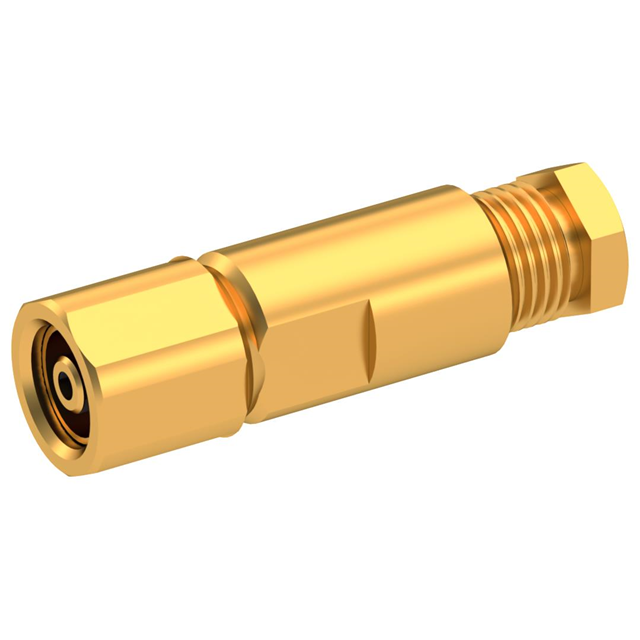

Radiall USA, Inc. R112005000	Polytetrafluoroethylene (PTFE)	500	335 V	Gold	Brass	Gold	165 °C	-65 ░C		187 188 316 RG-179	Free Hanging (In-Line)	10 GHz	Gold	Threaded	1	Clamp	Female Socket Plug	50 Ohms	SMC	Beryllium Copper	Solder

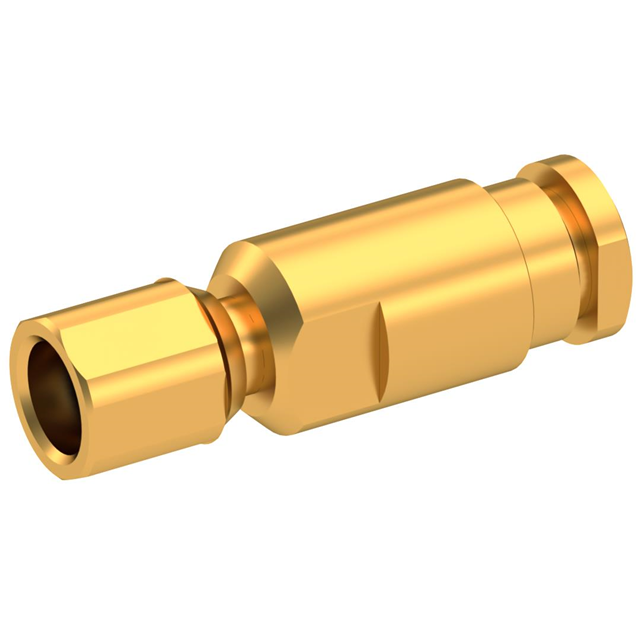

Radiall USA, Inc. R112009000	Polytetrafluoroethylene (PTFE)	500	335 V	Gold	Brass	Gold	165 °C	-65 ░C		RG-180 195	Free Hanging (In-Line)	10 GHz	Gold	Threaded	1	Clamp	Female Socket Plug	50 Ohms	SMC	Beryllium Copper	Solder
