TPS2490 Series

9-V to 80-V hot swap controller with power limiting and latch off

Catalog

9-V to 80-V hot swap controller with power limiting and latch off

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Package / Case [x]	Package / Case [x]	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Supplier Device Package	Programmable Features	Applications	Mounting Type	Number of Channels	Utilized IC / Part	Supplied Contents	Secondary Attributes [Max]	Secondary Attributes [Min]	Primary Attributes
Texas Instruments TPS2490DGSR	85 °C	-40 °C	Latched Fault	10-MSOP 10-TFSOP	3 mm	0.118 in	1 mA	9 V	80 V	Hot Swap Controller	10-VSSOP	Current Limit Fault Timeout UVLO	General Purpose	Surface Mount	1
Texas Instruments TPS2490DGSRG4	85 °C	-40 °C	Latched Fault	10-MSOP 10-TFSOP	3 mm	0.118 in	1 mA	9 V	80 V	Hot Swap Controller	10-VSSOP	Current Limit Fault Timeout UVLO	General Purpose	Surface Mount	1

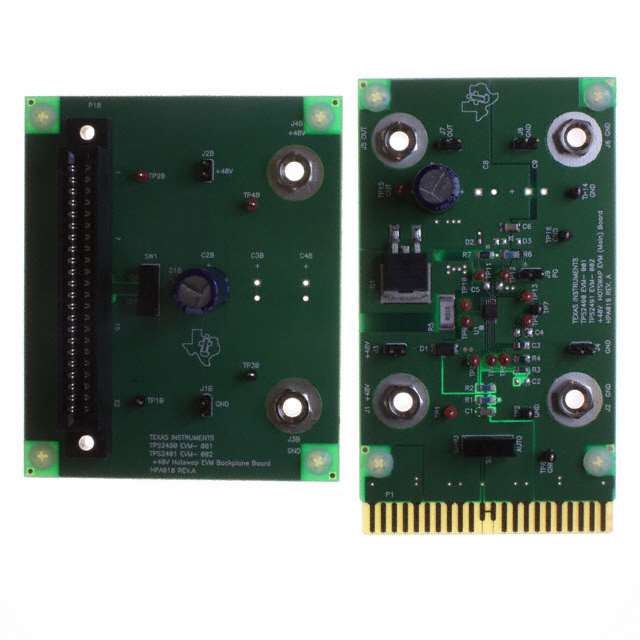

Texas Instruments TPS2490EVM-001										Power Management						TPS2490	Board(s)	80 V	9 V	High Side MOSFET Driver Inrush Current Limiting

Catalog

9-V to 80-V hot swap controller with power limiting and latch off

Key Features

• Programmable Power Limiting and Current Limiting for Complete Safe Operating Area (SOA) ProtectionWide Operating Range: 9 V to 80 VLatched Operation (TPS2490) and Automatic Retry (TPS2491)High-Side Drive for Low-RDS(on)External N-channel MOSFETProgrammable Fault Timer to Protect the MOSFET and Eliminate Nuisance ShutdownsPower Good Open-Drain Output for Downstream DC/DC CoordinationEnable Can Be Used as a Programmable Undervoltage Lockout or Logic ControlSmall, Space-Saving 10-pin VSSOP PackageCalculator Tool Available (TPS2490/91 Design-in Calculator, SLVC033)Programmable Power Limiting and Current Limiting for Complete Safe Operating Area (SOA) ProtectionWide Operating Range: 9 V to 80 VLatched Operation (TPS2490) and Automatic Retry (TPS2491)High-Side Drive for Low-RDS(on)External N-channel MOSFETProgrammable Fault Timer to Protect the MOSFET and Eliminate Nuisance ShutdownsPower Good Open-Drain Output for Downstream DC/DC CoordinationEnable Can Be Used as a Programmable Undervoltage Lockout or Logic ControlSmall, Space-Saving 10-pin VSSOP PackageCalculator Tool Available (TPS2490/91 Design-in Calculator, SLVC033)

Description

The TPS249x are easy-to-use, positive high voltage, 10-pin Hot Swap Power Manager devices that safely drive an external N-channel MOSFET switch. The power limit and current limit (both are adjustable and independent of each other) ensure that the external MOSFET operates inside a selected safe operating area (SOA) under the harshest operating conditions. Applications include inrush current limiting, electronic circuit breaker protection, controlled load turn-on, interfacing to down-stream DC-to-DC converters, and power feed protection. These devices are available in a small, space-saving 10-pin VSSOP package and significantly reduce the number of external devices, saving precious board space. The TPS249x is supported by application notes, an evaluation module, and a design tool. The TPS249x are easy-to-use, positive high voltage, 10-pin Hot Swap Power Manager devices that safely drive an external N-channel MOSFET switch. The power limit and current limit (both are adjustable and independent of each other) ensure that the external MOSFET operates inside a selected safe operating area (SOA) under the harshest operating conditions. Applications include inrush current limiting, electronic circuit breaker protection, controlled load turn-on, interfacing to down-stream DC-to-DC converters, and power feed protection. These devices are available in a small, space-saving 10-pin VSSOP package and significantly reduce the number of external devices, saving precious board space. The TPS249x is supported by application notes, an evaluation module, and a design tool.
