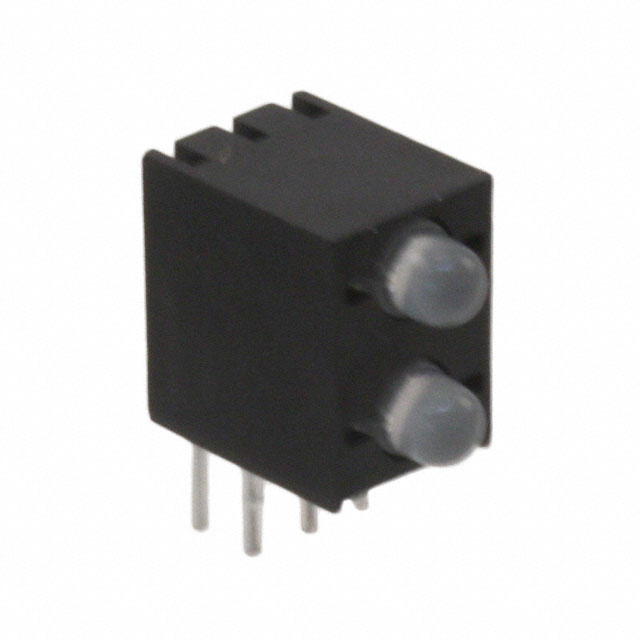

WP130 Series

Catalog

LED CBI 3MM RED/YELLOW DIFF RA

Part	Lens Style	Mounting Type	Voltage Rating	Lens Size	Lens Size	Wavelength - Peak	Millicandela Rating	Lens Type	Color	Configuration	Current	Viewing Angle	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Lens Color	Current
Kingbright WP130WDT/EYW	Round with Domed Top	Right Angle Through Hole	2 V 2.1 V	3 mm	T-1	590 nm 627 nm	20 mcd 24 mcd	Diffused White	Red Yellow	Single	30mA Red 30mA Yellow	60 °

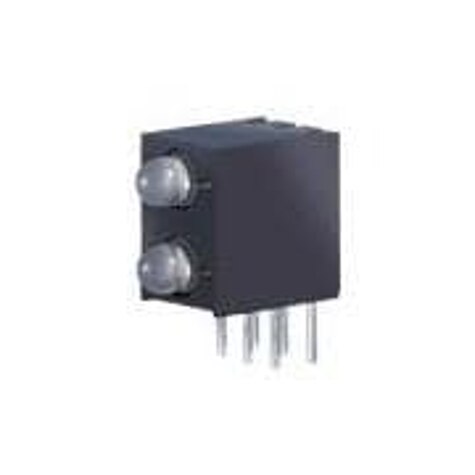

Kingbright WP130WCP/2GYW	Round with Domed Top	Right Angle Through Hole	2.1 V 2.2 V	3 mm	T-1	565 nm 590 nm	20 mcd 40 mcd	Diffused White	Green (x 1) Yellow (x 1)	2 High	25mA Green 30mA Yellow	60 °
Kingbright WP130WCP/2EYW	Round with Domed Top	Right Angle Through Hole		3 mm	T-1	590 nm 627 nm	20 mcd 24 mcd		Red Yellow	Common Cathode		60 °	Radial - 3 Leads	20 mA 20 mA	2 V 2.1 V	T-1	588nm Yellow 617nm Red	Diffused	7 mm	9.02 mm	9.65 mm	White

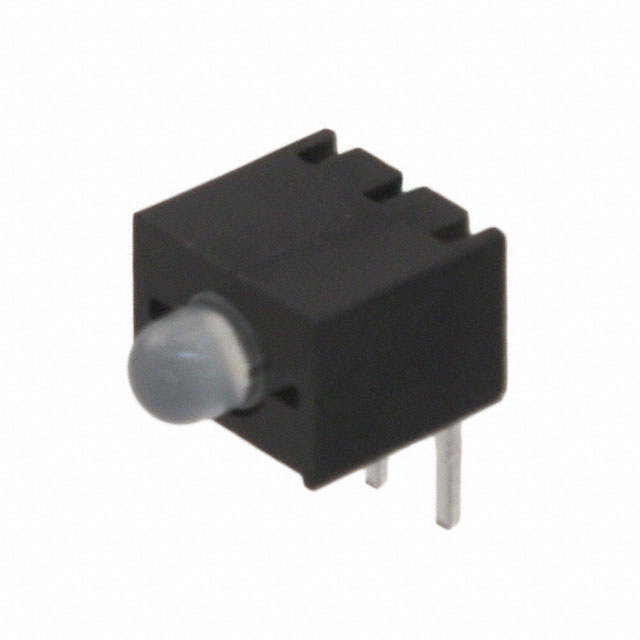

Kingbright WP130WDT/EGW	Round with Domed Top	Right Angle Through Hole	2 V 2.2 V	3 mm	T-1	568 nm 625 nm	21 mcd	Diffused White	Green Red	Single		60 °											20 mA
Kingbright WP130WCP/2EGW	Round with Domed Top	Right Angle Through Hole	2 V 2.2 V	3 mm	T-1	568 nm 625 nm	21 mcd	Diffused White	Green Red	2 High		60 °											20 mA

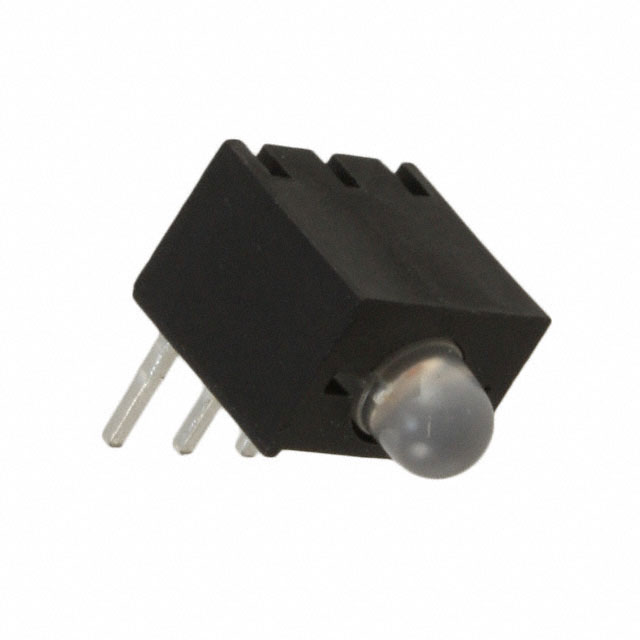

Kingbright WP130WDT/GYW	Round with Domed Top	Right Angle Through Hole	2.1 V 2.2 V	3 mm	T-1	565 nm 590 nm	20 mcd 40 mcd	Diffused White	Green Yellow	Single	25mA Green 30mA Yellow	60 °
