RZB22 Series

Catalog

CONN EDGE DUAL FMALE 44POS 0.050

Part	Material - Insulation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Type	Termination	Features	Contact Finish	Card Type	Contact Material	Read Out	Gender	Number of Positions/Bay/Row	Card Thickness	Card Thickness

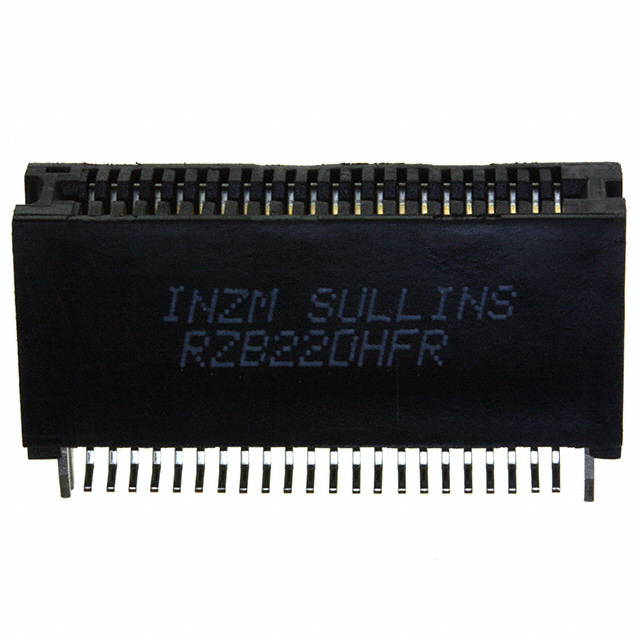

Sullins Connector Solutions RZB22DHFR	Polyphenylene Sulfide (PPS)	Black	-65 ░C	125 °C	44	2	Surface Mount	0.25 Ám	10 Áin	0.05 in	1.27 mm	Hairpin Bellows	Solder	Board Lock	Gold	Non Specified - Dual Edge	Phosphor Bronze	Dual	Female	22	1.57 mm	0.062 in

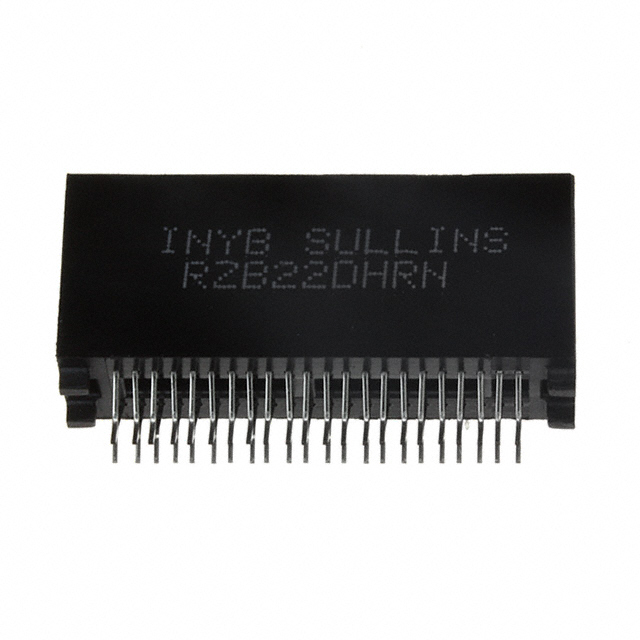

Sullins Connector Solutions RZB22DHRN	Polyphenylene Sulfide (PPS)	Black	-65 ░C	125 °C	44	2	Board Edge Straddle Mount	0.25 Ám	10 Áin	0.05 in	1.27 mm	Hairpin Bellows	Solder	Card Extender	Gold	Non Specified - Dual Edge	Phosphor Bronze	Dual	Female	22	1.57 mm	0.062 in
Sullins Connector Solutions RZB22DHHN	Polyphenylene Sulfide (PPS)	Black	-65 ░C	125 °C	44	2	Through Hole	0.25 Ám	10 Áin	0.05 in	1.27 mm	Hairpin Bellows	Solder Staggered		Gold	Non Specified - Dual Edge	Phosphor Bronze	Dual	Female	22	1.57 mm	0.062 in
