218509 Series

Milli-Grid-to-Milli-Grid Off-the-Shelf (OTS) Cable Assembly, 2.00mm Pitch, Dual Row, 600.00mm Length, 8 Circuits, Black

Manufacturer: Molex

Catalog

Milli-Grid-to-Milli-Grid Off-the-Shelf (OTS) Cable Assembly, 2.00mm Pitch, Dual Row, 600.00mm Length, 8 Circuits, Black

Part	Length	Length	Length	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Cable Termination	Number of Rows	Connector Type	Contact Finish	Length [x]	Length [x]	Length [x]

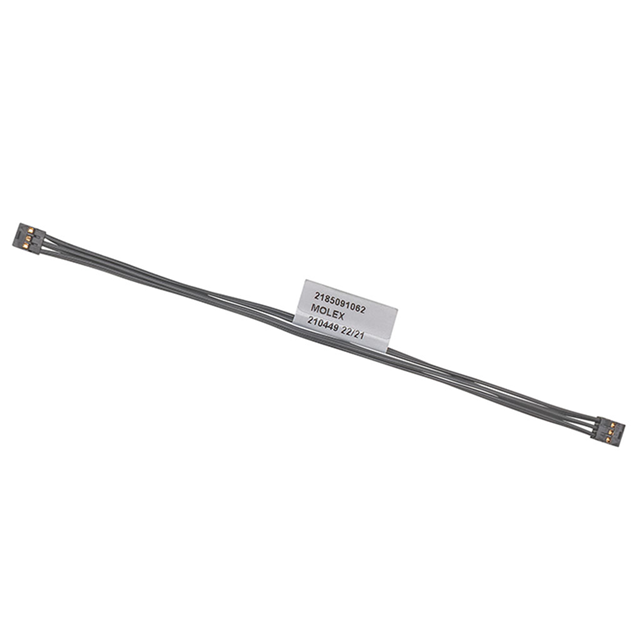

Molex 2185091062	150 mm	5.91 "	0.492 ft	6	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091043				4	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin	0.984 '	11.81 "	300 mm
Molex 2185091061	100 mm	3.94 "	0.328 '	6	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091084	600 mm		1.97 ft	8	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091082	150 mm	5.91 "	0.492 ft	8	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091042	150 mm	5.91 "	0.492 ft	4	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091081	100 mm	3.94 "	0.328 '	8	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091063				6	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin	0.984 '	11.81 "	300 mm
Molex 2185091080	50 mm	1.97 "	0.164 '	8	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin
Molex 2185091103				10	Locking Ramp	98.4 µin	2.5 µm	2 mm	0.079 in	Unshielded	Crimp	2	Socket to Socket	Tin	0.984 '	11.81 "	300 mm

Milli-Grid-to-Milli-Grid Off-the-Shelf (OTS) Cable Assembly, 2.00mm Pitch, Dual Row, 600.00mm Length, 8 Circuits, Black
