FDA2-17238 Series
Manufacturer: Qualtek
Beta
⌘K

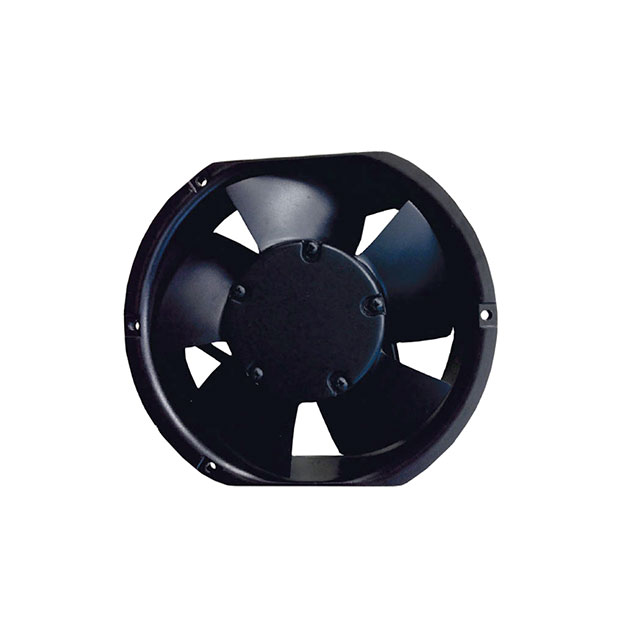

FAN AXIAL 172X38.5MM 115VAC TERM
| Part | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Material - Blade | Bearing Type | Voltage - Rated | RPM | Width [y] | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Power (Watts) | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Termination | Approval Agency | Noise | Ingress Protection | Air Flow | Air Flow | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 100000 Hrs | 0.21 A | Aluminum | Plastic | Ball | 115 VAC | 3100 RPM | 38.5 mm | 0.571 in H2O | 142.2 Pa | -20 ░C | 70 °C | Tubeaxial | 25 W | Rectangular/Rounded | 151 mm | 172 mm | 2 | CE cURus TUV | 59 dB(A) | IP54 - Dust Protected Water Resistant | 6.72 mł/min | 240 CFM | 1.8 lbs | 816.5 g |
