69802 Series

Catalog

CONN SOCKET PLCC 44POS TIN

Part	Contact Finish - Post	Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material - Post	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Contact Resistance	Termination Post Length	Termination Post Length	Housing Material	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

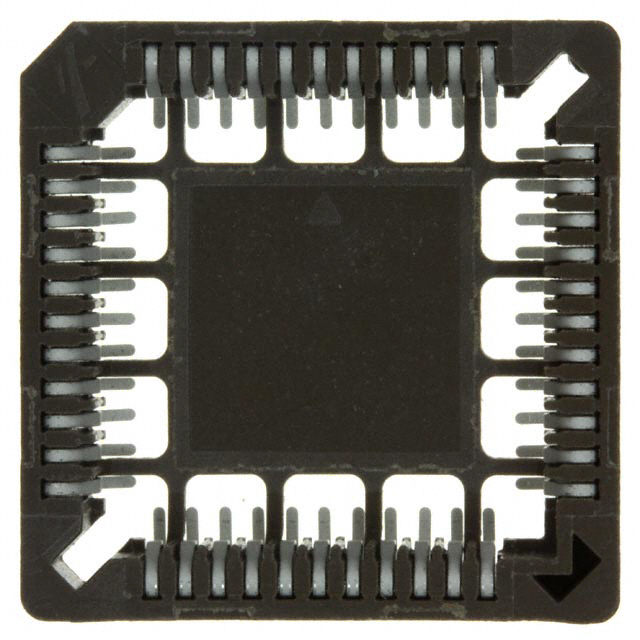

Amphenol ICC (FCI) 69802-044LF	Tin	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Closed Frame	Surface Mount	-55 °C	125 °C	1 A	4 11	44	150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm

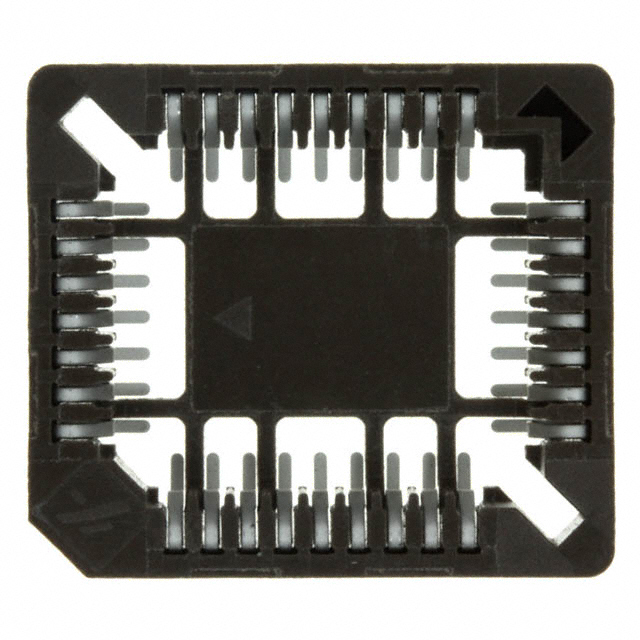

Amphenol ICC (FCI) 69802-132LF	Tin	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Closed Frame	Surface Mount	-55 °C	125 °C	1 A		32	150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm

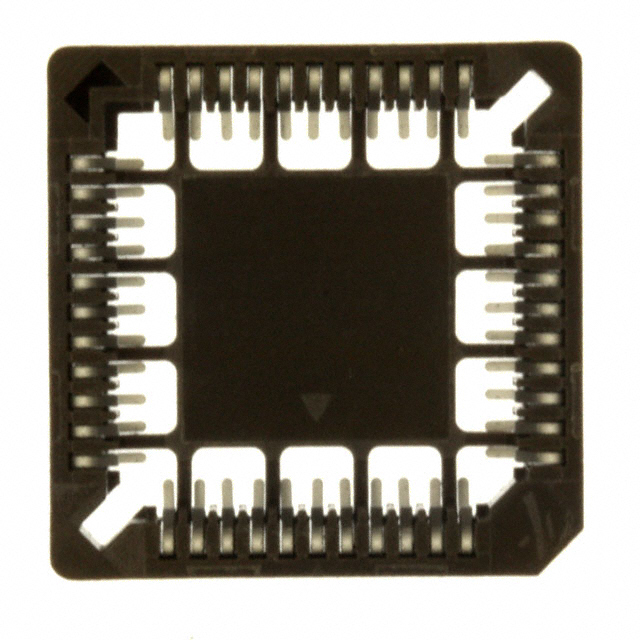

Amphenol ICC (FCI) 69802-144LF	Tin	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Closed Frame	Surface Mount	-55 °C	125 °C	1 A	4 11	44	150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm

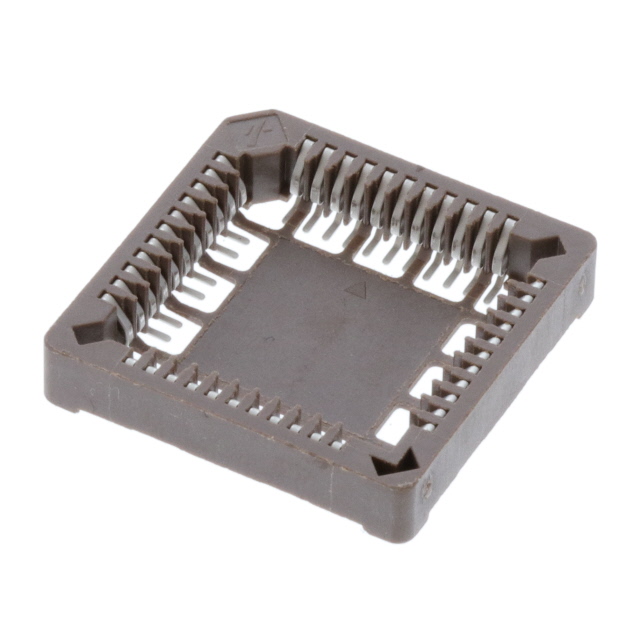

Amphenol ICC (FCI) 69802-444LF	Tin-Lead	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Open Frame	Surface Mount	-55 °C	125 °C	1 A	4 11	44	150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm	0.06 in	1.52 mm	Polyphenylene Sulfide (PPS) Glass Filled	Tin-Lead

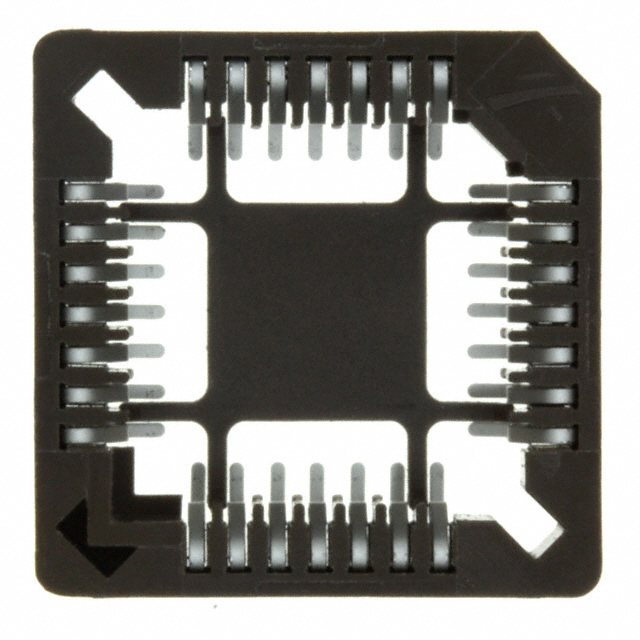

Amphenol ICC (FCI) 69802-128LF	Tin	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Closed Frame	Surface Mount	-55 °C	125 °C	1 A		28	150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm					4	7

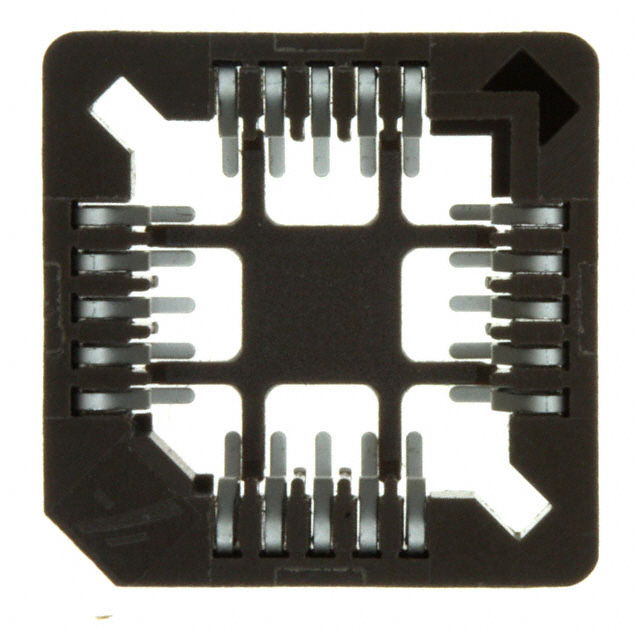

Amphenol ICC (FCI) 69802-120LF	Tin	PLCC	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	Closed Frame	Surface Mount	-55 °C	125 °C	1 A			150 Áin	3.81 Ám	Solder	Phosphor Bronze	150 Áin	3.81 Ám	1.27 mm	0.05 in	20 mOhm					4	5	20
