M50-320 Series

Catalog

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE MOUNT

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Applications	Contact Shape	Number of Positions	Insulation Color	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Number of Positions Loaded	Termination	Fastening Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating

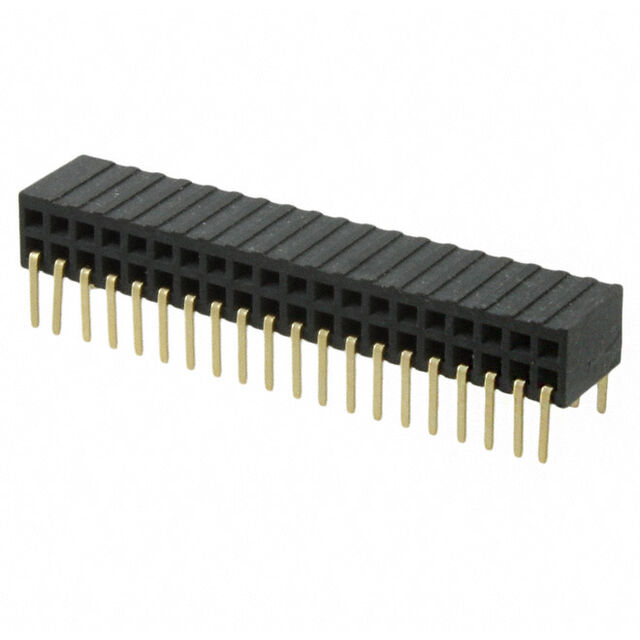

Harwin Inc. M50-3202045	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	40	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in

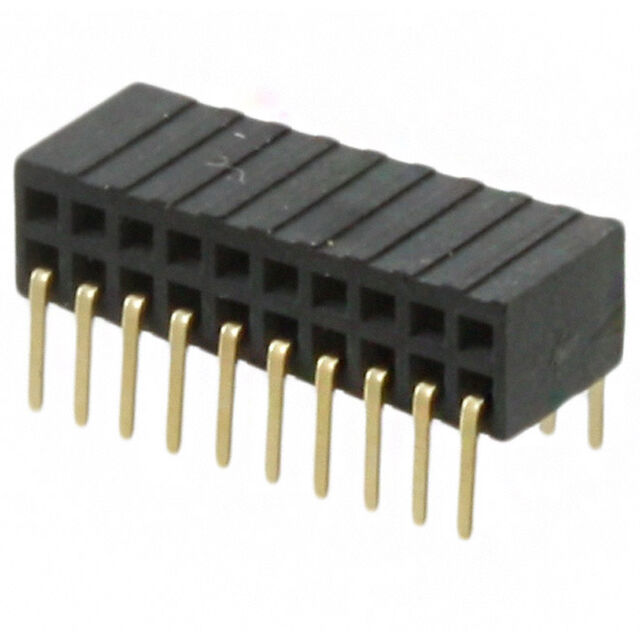

Harwin Inc. M50-3201045	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	20	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in

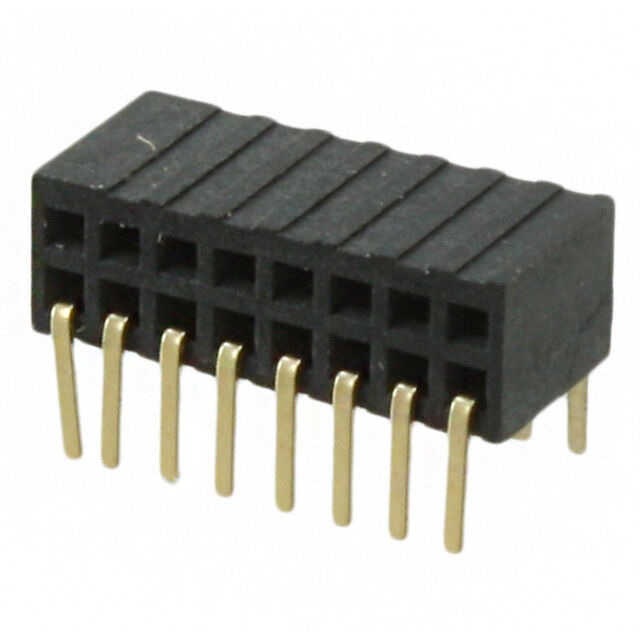

Harwin Inc. M50-3200845	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	16	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in

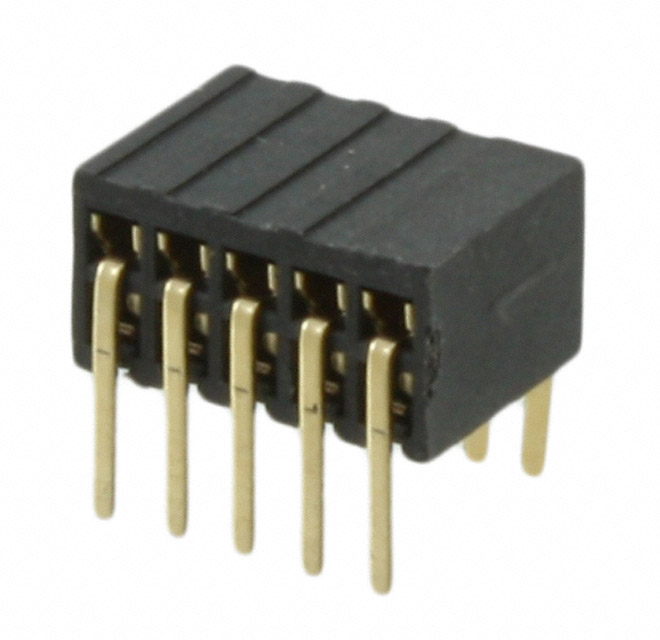

Harwin Inc. M50-3200545	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	10	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in
Harwin Inc. M50-3200445	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	8	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in

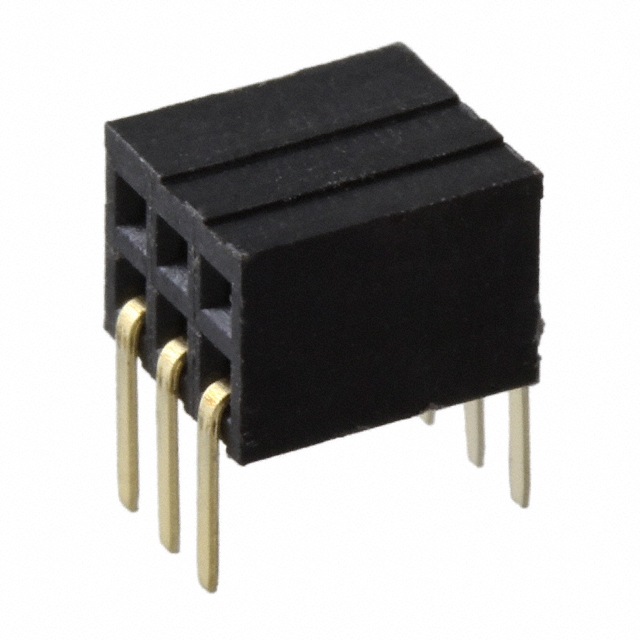

Harwin Inc. M50-3200345	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	6	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in
Harwin Inc. M50-3200645	Nylon 9T Polyamide (PA9T)	10 Áin	0.25 çm	Phosphor Bronze	General Purpose Medical Telecommunications	Square	12	Black	2	-40 C	105 ░C	Gold	0.05 in	1.27 mm	Board to Board Cable	UL94 V-0	Receptacle	0.25 µm	10 µin	3.46 mm	0.136 in	Right Angle Through Hole	All	Solder	Push-Pull	Gold	2.4 mm	0.094 in	Female Socket	1.27 mm	0.05 in
