S4P-VH(L Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

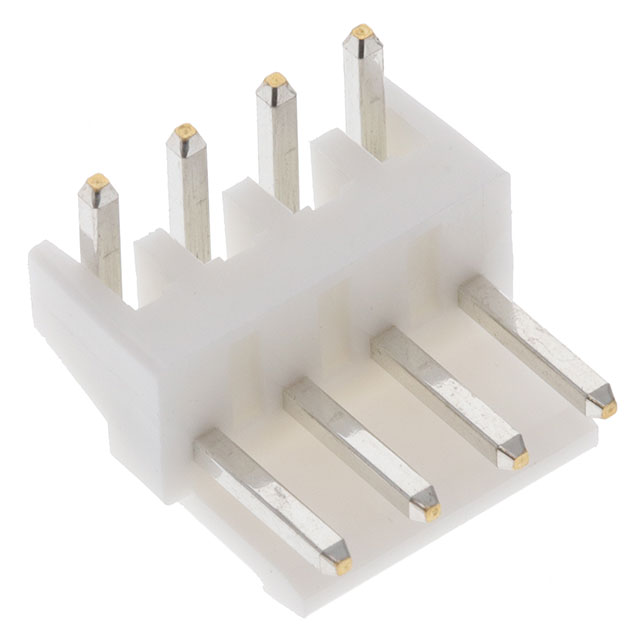

CONN HEADER R/A 4POS 3.96MM
| Part | Mounting Type | Voltage Rating | Material Flammability Rating | Shrouding | Insulation Material | Termination | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Style | Contact Shape | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Type | Fastening Type | Connector Type | Number of Positions | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Material | Insulation Height | Insulation Height | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Through Hole | 250 V | UL94 V-0 | Shrouded - 1 Wall | Nylon 6/6 Polyamide (PA66) | Solder | Natural | 85 °C | -25 °C | 0.142 in | 3.6 mm | Board to Cable/Wire | Square | 10 A | 3.96 mm | 0.156 in | Tin | Male Pin | Locking Ramp | Header | 4 | All | 0.303 in | 7.7 mm | Brass | 0.335 " | 8.51 mm | 1 |
