SUCW1R54815 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-15V 1.5W
| Part | Applications | Package / Case | Voltage - Output 1 | Voltage - Input (Max) [Max] | Type | Voltage - Isolation | Efficiency | Number of Outputs | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Mounting Type | Voltage - Output 2 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

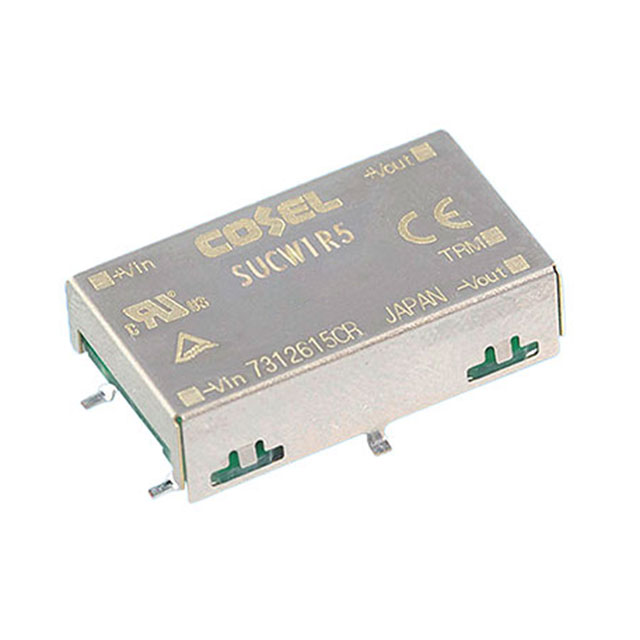

 Cosel USA, Inc. | ITE (Commercial) | 6-SMD Module | 15 V | 76 V | Isolated Module | 500 V | 73 % | 2 | 36 V | -40 °C | 85 °C | 50 mA | 7 mm | 12.7 mm | 22.4 mm | 0.88 " | 0.5 " | 0.28 " | 1.5 W | Surface Mount | -15 V | |
Cosel USA, Inc. | ITE (Commercial) | 6-SMD Module | 15 V | 76 V | Isolated Module | 500 V | 73 % | 2 | 36 V | -40 °C | 85 °C | 50 mA | 7 mm | 12.7 mm | 22.4 mm | 0.88 " | 0.5 " | 0.28 " | 1.5 W | Surface Mount | -15 V | |

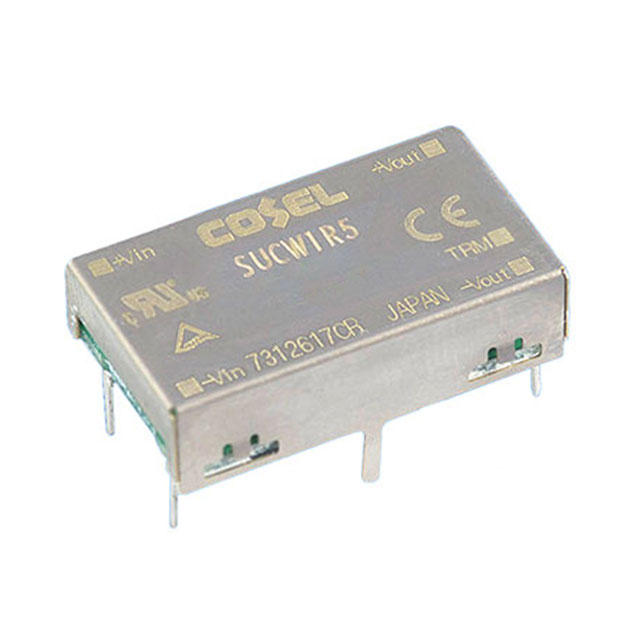

 Cosel USA, Inc. | ITE (Commercial) | 6-DIP Module | 15 V | 76 V | Isolated Module | 500 V | 73 % | 2 | 36 V | -40 °C | 85 °C | 50 mA | 7 mm | 12.7 mm | 22.4 mm | 0.88 " | 0.5 " | 0.28 " | Through Hole | -15 V | OCP |
