5129/27C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

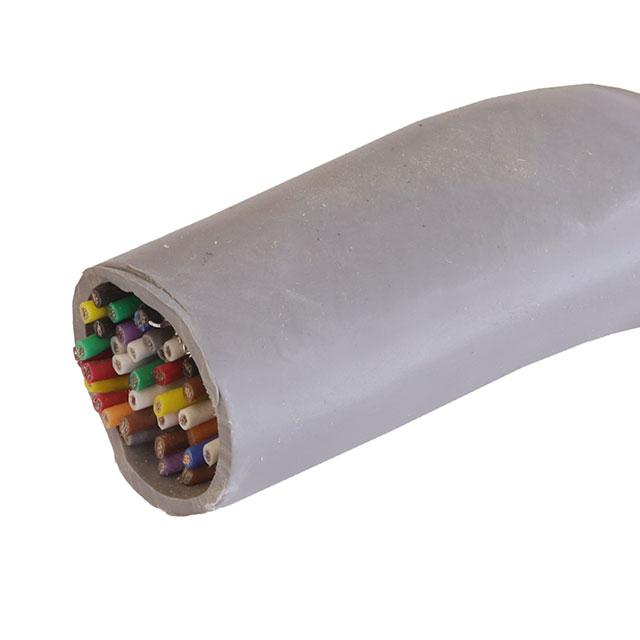

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 27 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Ratings | Conductor Insulation | Length | Length | Features | Number of Conductors | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Usage | Wire Gauge | Voltage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Biological Compatibility Drain Wire Rip Cord | 54 Conductors | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.053 " | 1.346 mm | -35 °C | 105 ░C | Slate | Communication Control | 22 AWG | 300 VDC | Braid Foil | 0.649 in | 16.49 mm | Multi-Pair | 30 AWG | 7 |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | ISO 10993 | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | 54 Conductors | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.053 " | 1.346 mm | -35 °C | 105 ░C | Slate | Communication Control | 22 AWG | 300 VDC | Braid Foil | 0.649 in | 16.49 mm | Multi-Pair | 30 AWG | 7 |
