BR1101 Series
Manufacturer: Stanley Electric Co
Beta
⌘K
LED UNI-COLOR RED 660NM 2-PIN SMD T/R
| Part | Current - Test | Mounting Type | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Millicandela Rating | Color | Lens Transparency | Wavelength - Peak | Wavelength - Dominant | Height (Max) [z] | Lens Style | Viewing Angle | Lens Size [y] | Lens Size [x] | Package / Case | Configuration | Lens Color | Lens Size | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

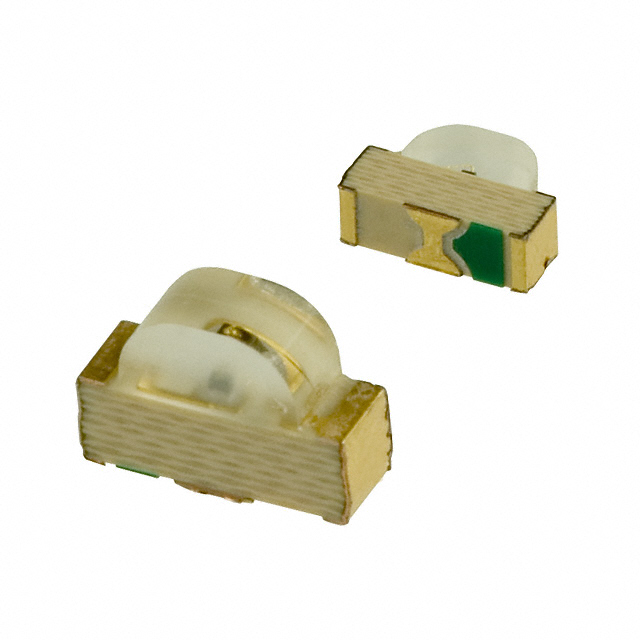

 Stanley Electric Co | 20 mA | Right Angle Surface Mount | 1.7 V | 3 mm | 2 mm | 2-SMD | 12.4 mcd | Red | Clear | 660 nm | 647 nm | 1 mm | Rectangle with Domed Top | 130 ° 174 ° | 1 mm | 2 mm | 2-SMD No Lead | Standard | Colorless | ||
 Stanley Electric Co | 20 mA | Surface Mount | 1.7 V | 3 mm | 1.5 mm | 3216 Type | 12.8 mcd | Red | Clear | 660 nm | 647 nm | Square with Flat Top | 141 ° 152 ° | 1206 (3016 Metric) 1206 (3216 Metric) | Standard | Colorless | 1.5 mm | 1.9 mm |
