216446 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

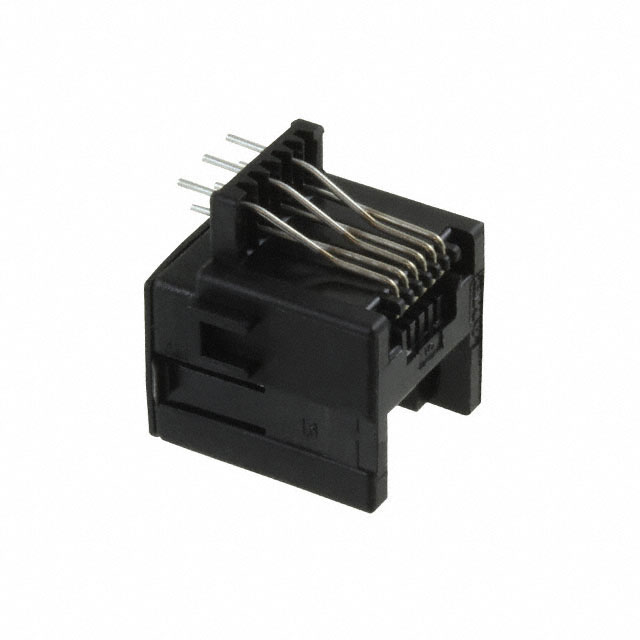

CONN MOD JACK 6P6C VERT UNSHLD
| Part | Number of Ports | Housing Material | Number of Positions/Contacts | Orientation | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | LED Color | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Tab Direction | Number of Rows | Ratings | Connector Type | Termination | Contact Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | Polyamide (PA) Nylon Glass Filled | 6p6c (RJ11 RJ12 RJ14 RJ25) | Vertical | Panel Lock Panel Stops | 1.25 µm | 49.3 µin | Bottom Entry Through Board Through Hole | Does Not Contain LED | Gold | -40 °C | 70 °C | User Selectable | 1 | Cat3 | Jack | Solder | Phosphor Bronze | Unshielded |
 TE Connectivity Raychem Cable Protection | 1 | Polyamide (PA) Nylon Glass Filled | 6p4c | Vertical | Solder Retention | 1.25 µm | 49.3 µin | Surface Mount | Does Not Contain LED | Gold | User Selectable | 1 | Jack | Solder | Phosphor Bronze | Unshielded | |||
 TE Connectivity Raychem Cable Protection | 1 | Polyamide (PA) Nylon Glass Filled | 6p6c (RJ11 RJ12 RJ14 RJ25) | Vertical | Panel Lock Panel Stops | 1.25 µm | 49.3 µin | Bottom Entry Through Board Through Hole | Does Not Contain LED | Gold | -40 °C | 70 °C | User Selectable | 1 | Cat3 | Jack | Solder | Phosphor Bronze | Unshielded |
