M2022BB Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Actuator Material	Switch Function	Mounting Type	Termination Style	Current Rating (Amps)	Circuit	Illumination	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Features	Actuator Type	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection
NKK Switches M2022BB1W01/CUL	25000 Steps	Brass Chrome Plated	On-On	Panel Mount	Solder Lug	4 A 6 A	DPDT	Non-Illuminated	M12 x 1	85 °C	-30 ░C	12.5 mm	11.5 mm	Epoxy Sealed Terminals	Standard Round	30 V	125 V

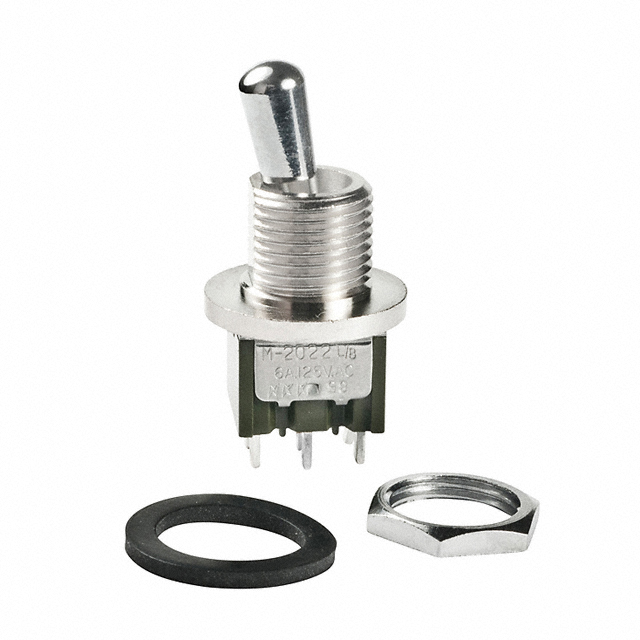

NKK Switches M2022BB3W01	25000 Steps	Brass Chrome Plated	On-On	Panel Mount	Solder Lug	4 A 6 A	DPDT	Non-Illuminated	M12 x 1	85 °C	-30 ░C	12.5 mm	11.5 mm	Epoxy Sealed Terminals	Standard Round	30 V	125 V	IP67 - Dust Tight Waterproof

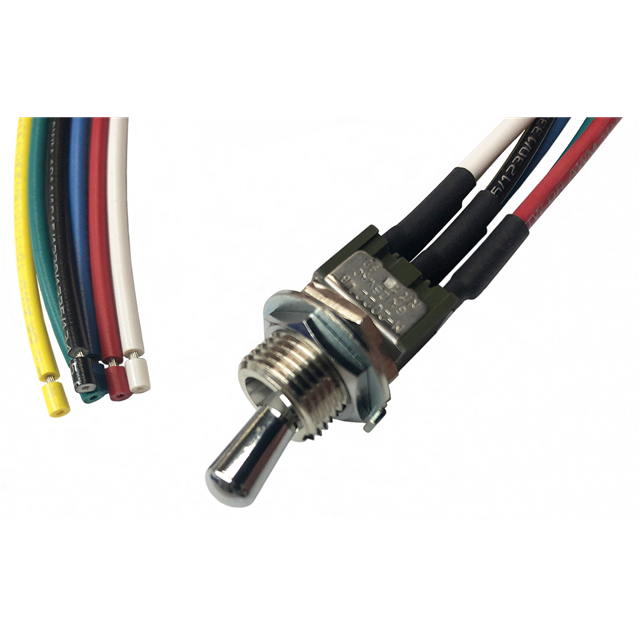

NKK Switches M2022BB1W01/CUL-WL	25000 Steps	Brass Chrome Plated	On-On	Panel Mount	Wire Leads	4 A 6 A	DPDT	Non-Illuminated	M12 x 1	85 °C	-30 ░C	12.5 mm	11.5 mm		Standard Round	30 V	125 V

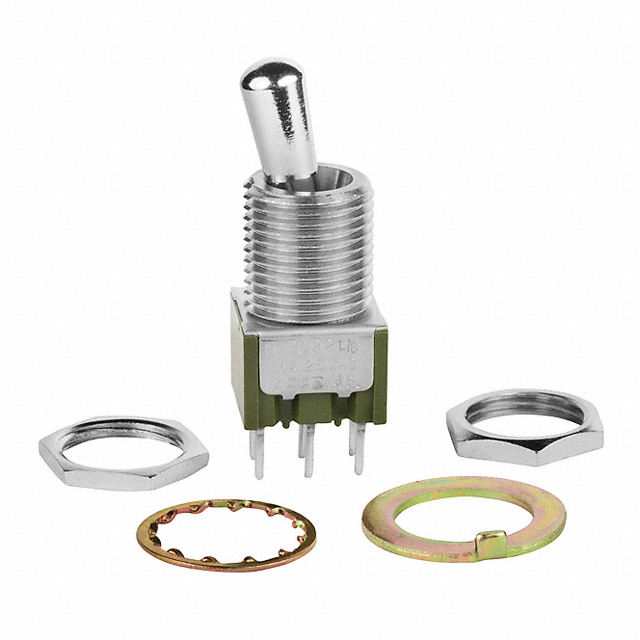

NKK Switches M2022BB1W03	25000 Steps	Brass Chrome Plated	On-On	Panel Mount	PC Pin	4 A 6 A	DPDT	Non-Illuminated	M12 x 1	85 °C	-30 ░C	12.5 mm	11.5 mm	Epoxy Sealed Terminals	Standard Round	30 V	125 V

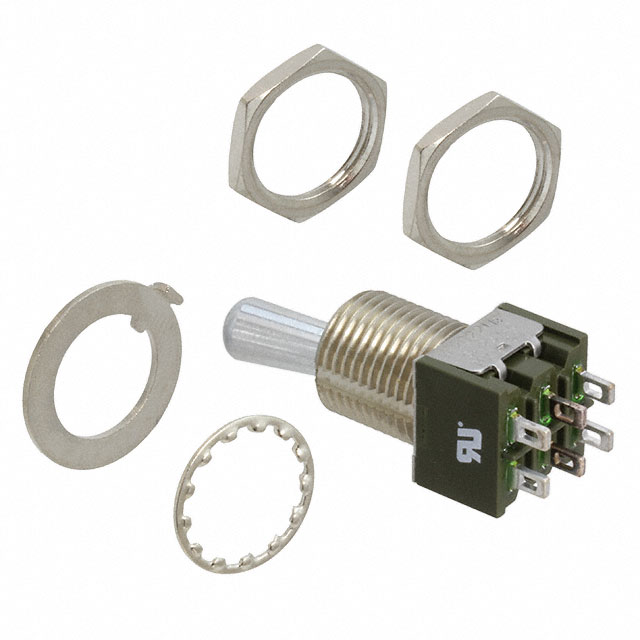

NKK Switches M2022BB1W01/U	25000 Steps	Brass Chrome Plated	On-On	Panel Mount	Solder Lug	4 A 6 A	DPDT	Non-Illuminated	M12 x 1	85 °C	-30 ░C	12.5 mm	11.5 mm	Epoxy Sealed Terminals	Standard Round	30 V	125 V
